Structural · S-TFH96

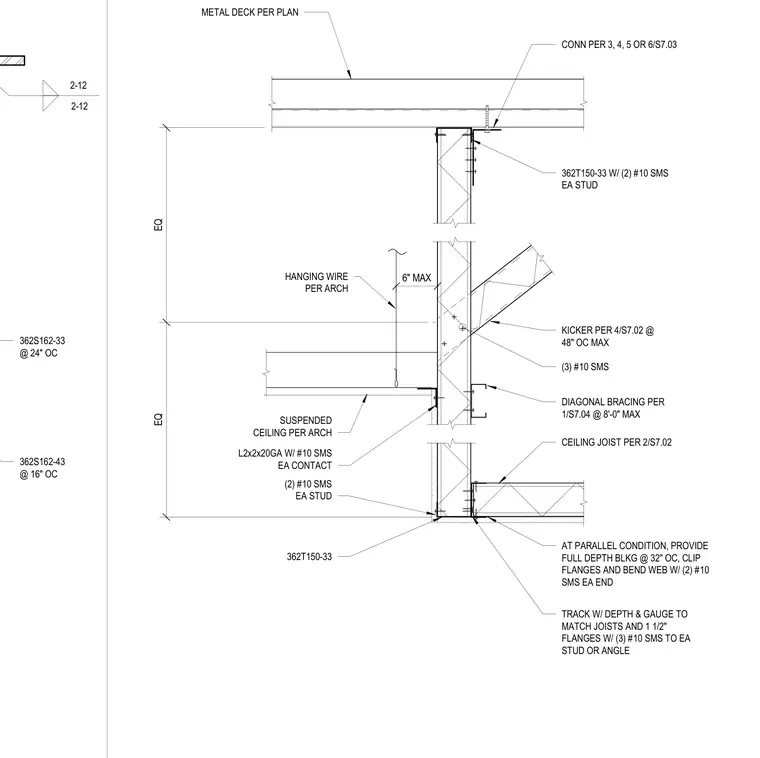

Suspended Ceiling Step and Bracing Detail at Metal Deck

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Beams Ceilings Decks Arches Bracing

Connections

Bracing Connection

About this detail

A stepped ceiling assembly anchors below an overhead metal deck. Framing consists of 362T150-33 tracks and 362S162 studs connected with self-tapping metal screws, supplemented by diagonal bracing and kicker members spaced per structural plans. A suspended ceiling system integrates hanging wires, an L2x2x20 gauge angle, and stud contacts secured with multiple sheet metal screws at each end. Full-depth blocking is provided at parallel conditions spaced thirty-two inches on center with clipped flanges and bent webs.
