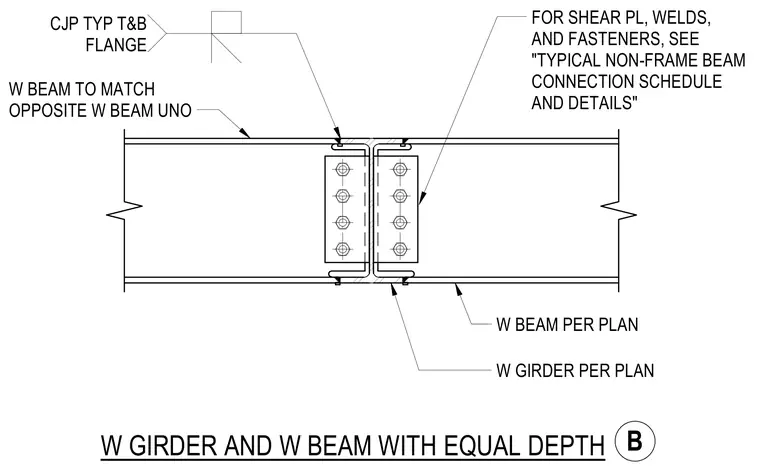

A wide-flange beam connects to a wide-flange girder of equal depth using complete joint penetration welds at the top and bottom flanges. Shear plates bolted to the web provide the vertical shear transfer, with shear plate sizes, welds, and fasteners per the typical non-frame beam connection schedule. The intersecting wide-flange beam matches the opposite wide-flange beam unless noted otherwise.
FOR SHEAR PL, WELDS, AND FASTENERS, SEE "TYPICAL NON-FRAME BEAM CONNECTION SCHEDULE AND DETAILS" W BEAM PER PLAN W GIRDER PER PLAN W BEAM TO MATCH OPPOSITE W BEAM UNO W GIRDER AND W BEAM WITH EQUAL DEPTH CJP TYP T&B FLANGE B
