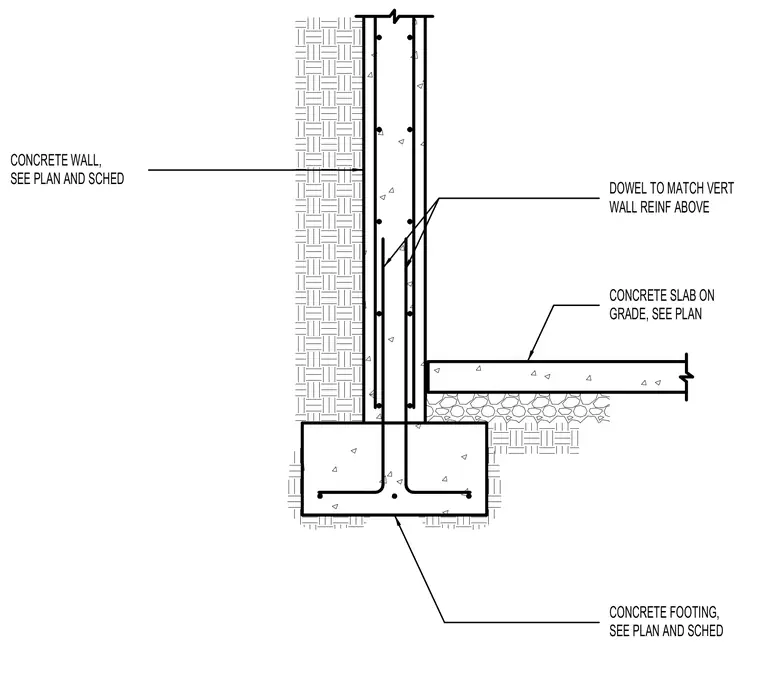

A cast-in-place concrete wall bears on a continuous concrete footing with horizontal and vertical reinforcing steel. Vertical wall reinforcement laps with dowels extending from the footing, sized per plan and schedule. A concrete slab on grade abuts the interior face of the concrete wall above the footing. The concrete footing rests on compacted subgrade.
CONCRETE SLAB ON GRADE, SEE PLAN DOWEL TO MATCH VERT WALL REINF ABOVE CONCRETE FOOTING, SEE PLAN AND SCHED CONCRETE WALL, SEE PLAN AND SCHED
