A hollow structural section member connects to a structural steel beam flange using one quarter-inch thick plate on each side, measuring four inches by six inches. Two three-quarter-inch diameter through bolts pass through horizontal short slotted holes in each connection plate. Fillet welds of three-sixteenth-inch size secure the assembly as specified per plan. The top of steel elevation is coordinated per plan with a one-inch minimum clearance.

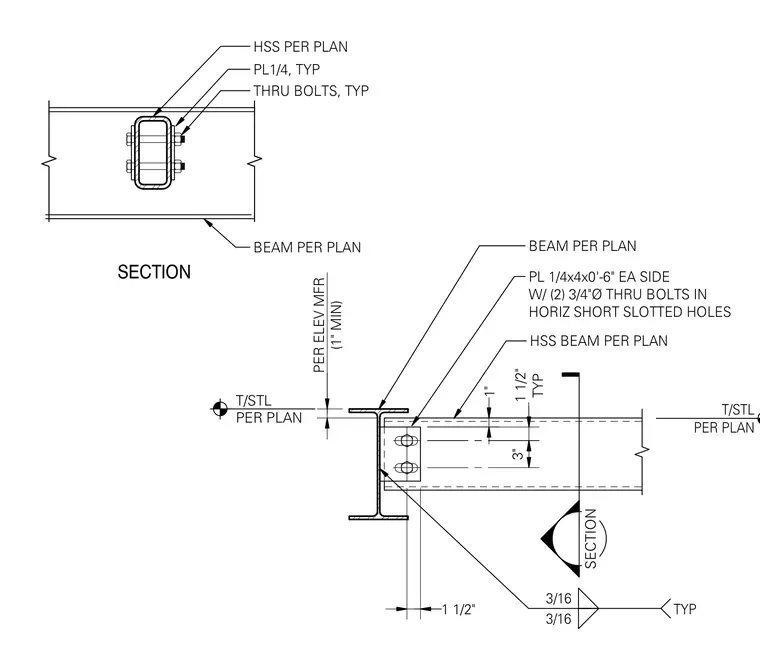

T/STL PER PLAN BEAM PER PLAN SECTION 3" 1 1/2" TYP 1 1/2" 1" BEAM PER PLAN T/STL PER PLAN (1" MIN) PER ELEV MFR 3/16 3/16 TYP PL1/4, TYP THRU BOLTS, TYP HSS PER PLAN HSS BEAM PER PLAN SECTION PL 1/4x4x0'-6" EA SIDE W/ (2) 3/4"Ø THRU BOLTS IN HORIZ SHORT SLOTTED HOLES
