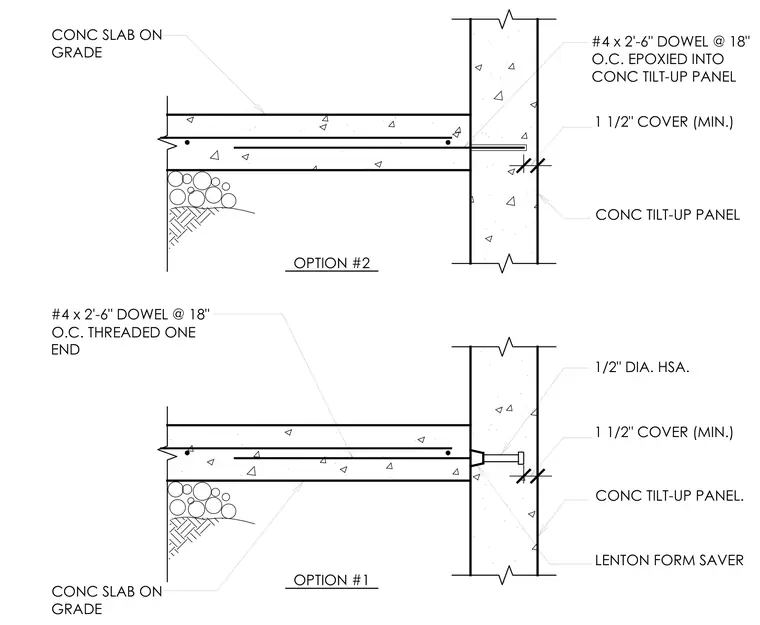

The concrete slab on grade meets the vertical concrete tilt-up panel with a minimum one and a half inch concrete cover. Option one connects the slab to the wall using a number four by two foot six inch dowel threaded on one end with a Lenton form saver anchored by a one half inch diameter stud anchor. Option two anchors a number four by two foot six inch dowel at eighteen inches on center epoxied directly into the concrete tilt-up panel. Both options maintain standard reinforcement spacing and slab edge detailing against the wall face.
1 1/2" COVER (MIN.) OPTION #2 OPTION #1 CONC SLAB ON GRADE CONC SLAB ON GRADE #4 x 2'-6" DOWEL @ 18" O.C. THREADED ONE END LENTON FORM SAVER CONC TILT-UP PANEL CONC TILT-UP PANEL. 1/2" DIA. HSA. #4 x 2'-6" DOWEL @ 18" O.C. EPOXIED INTO CONC TILT-UP PANEL 1 1/2" COVER (MIN.)
