Structural · S-TERDX

Canopy Roof Framing and Storefront Connection Detail

Materials

Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Beams Storefronts Roofs Canopies Ceilings Decks Arches Connections / Plates

Connections

HSS Connection

About this detail

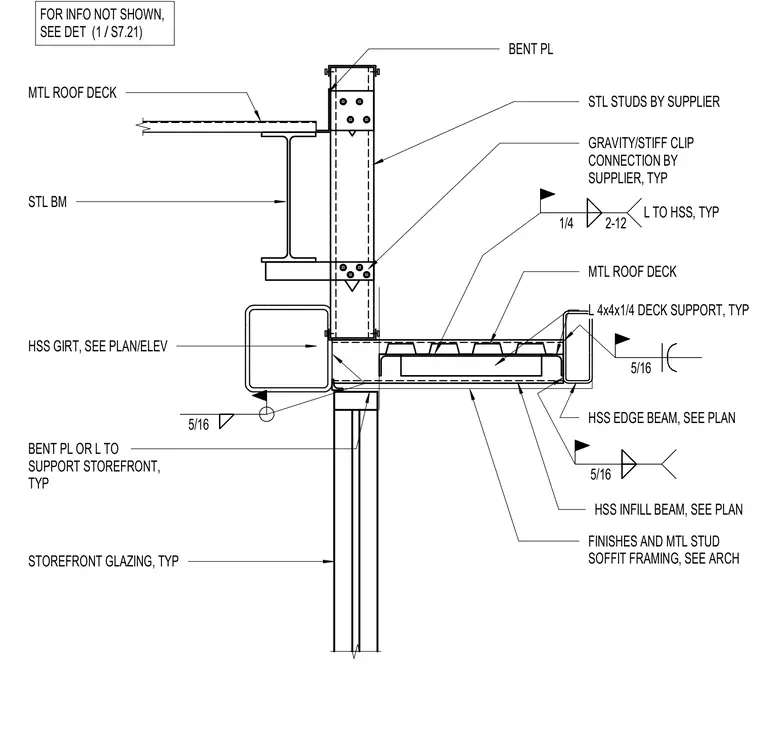

A canopy roof framing connection at a storefront interface comprises a metal roof deck bearing on structural steel beams and an edge hollow structural section, supported by an angle profile. A hollow structural section girt acts as the primary horizontal member, tying into cold-formed steel studs via typical gravity and stiff clip connections provided by the supplier. A bent plate or angle supports the typical storefront glazing below. Fillet welds of quarter-inch and five-sixteenth-inch sizes secure the steel framing components together.
