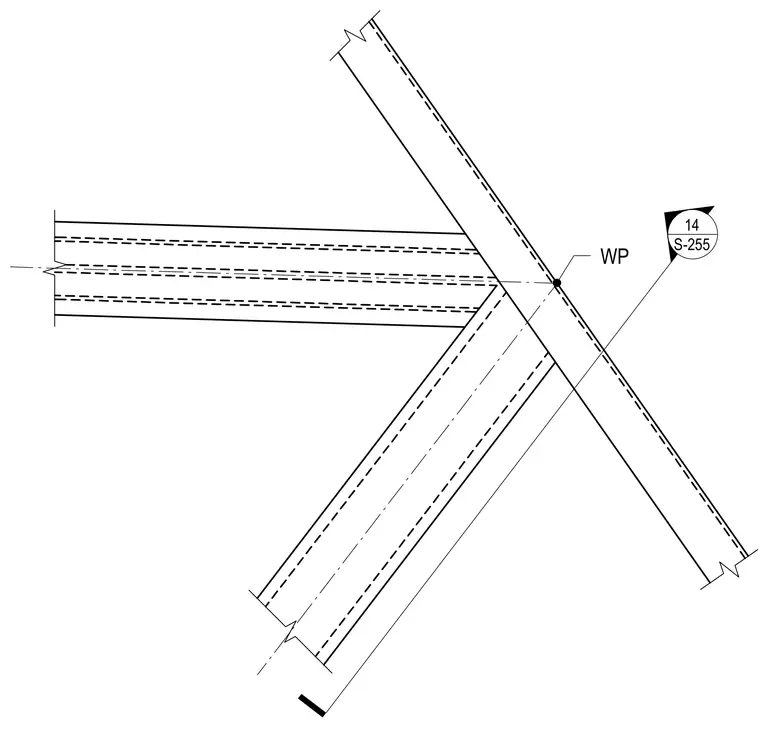

A structural steel braced frame joint intersects at a designated work point with intersecting hollow structural section or wide flange members. The diagonal brace member frames into the main chord or column member at the calculated work point intersection. Centerlines and hidden lines define the internal geometry and alignment of the framing members.
