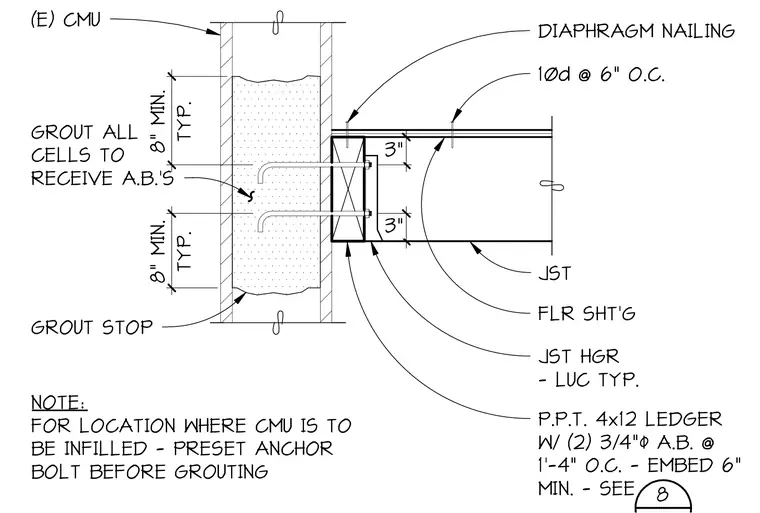

A preservative-treated 4x12 wood ledger is anchored to an existing 8-inch concrete masonry unit infill wall with two 3/4-inch diameter anchor bolts spaced at 1-4 on center and embedded 6 inches minimum. Anchor bolts are preset before grouting, and all cells receiving anchor bolts are fully grouted with a grout stop installed below. A floor joist connects to the ledger using a standard joist hanger secured with 10d nails at 6 inches on center. Floor sheathing fastens to the framing above with diaphragm nailing.
TYP. 8" MIN. (E) CMU GROUT ALL CELLS TO RECEIVE A.B.'S GROUT STOP DIAPHRAGM NAILING FLR SHT'G JST HGR - LUC TYP. JST P.P.T. 4x12 LEDGER W/ (2) 3/4"$ A.B. @ 1'-4" O.C. - EMBED 6" MIN. - SEE 8 NOTE: FOR LOCATION WHERE CMU IS TO BE INFILLED - PRESET ANCHOR BOLT BEFORE GROUTING 3" 3" 10d @ 6" O.C. TYP. 8" MIN.
