A hollow structural section header supports a stair landing slab and connects to a channel stringer with an L4x4x3/8 by zero-foot-three-inch angle clip fastened by one five-eighth-inch-diameter A325-N bolt on each side of the header. A three-sixteenth-inch fillet weld typically joins the channel stringer to the assembly, maintaining a half-inch gap.

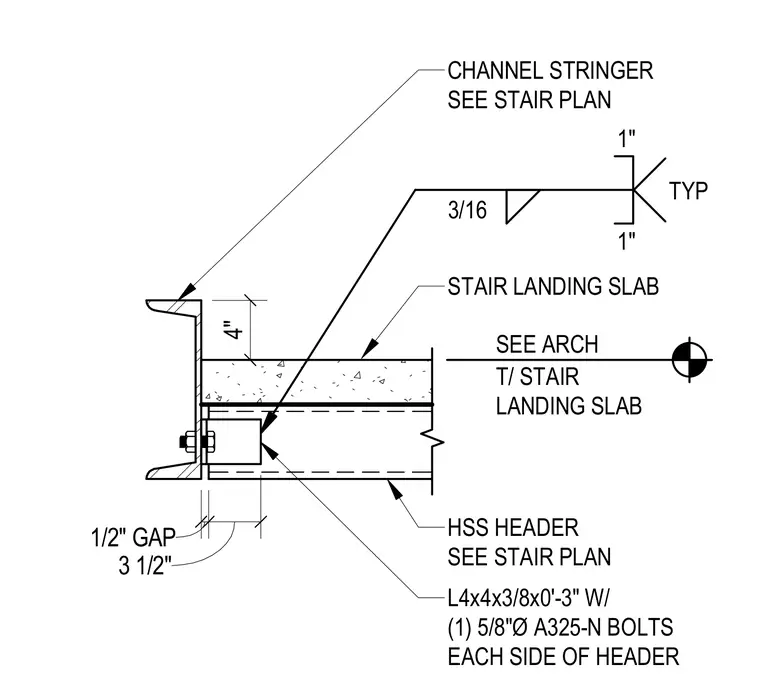

1/2" GAP 3 1/2" T/ STAIR LANDING SLAB SEE ARCH HSS HEADER SEE STAIR PLAN L4x4x3/8x0'-3" W/ (1) 5/8"Ø A325-N BOLTS EACH SIDE OF HEADER STAIR LANDING SLAB 3/16 TYP 1" 1" CHANNEL STRINGER SEE STAIR PLAN 4"
