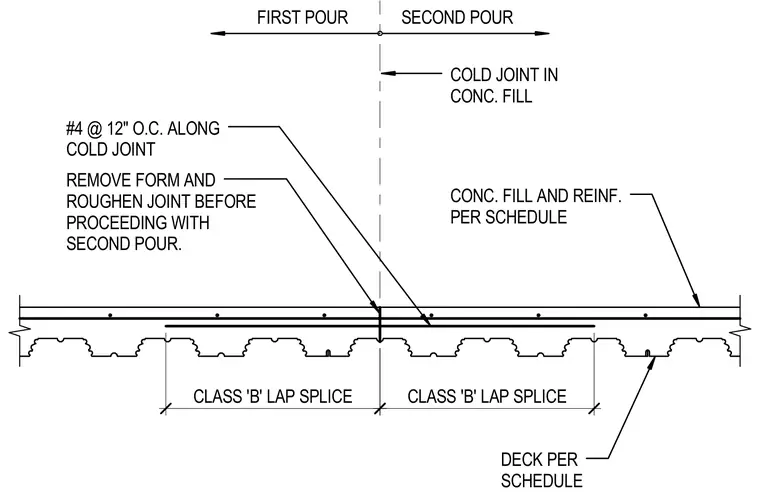

A cold joint is formed in the concrete fill between a first pour and a second pour over a metal deck. Number 4 reinforcing bars spaced at twelve inches on center run along the cold joint with a Class B lap splice. The form is removed and the joint is roughened before proceeding with the second pour. Concrete fill and reinforcement along with the metal deck are sized per schedule.
COLD JOINT IN CONC. FILL SECOND POUR FIRST POUR REMOVE FORM AND ROUGHEN JOINT BEFORE PROCEEDING WITH SECOND POUR. CONC. FILL AND REINF. PER SCHEDULE DECK PER SCHEDULE #4 @ 12" O.C. ALONG COLD JOINT CLASS 'B' LAP SPLICE CLASS 'B' LAP SPLICE
