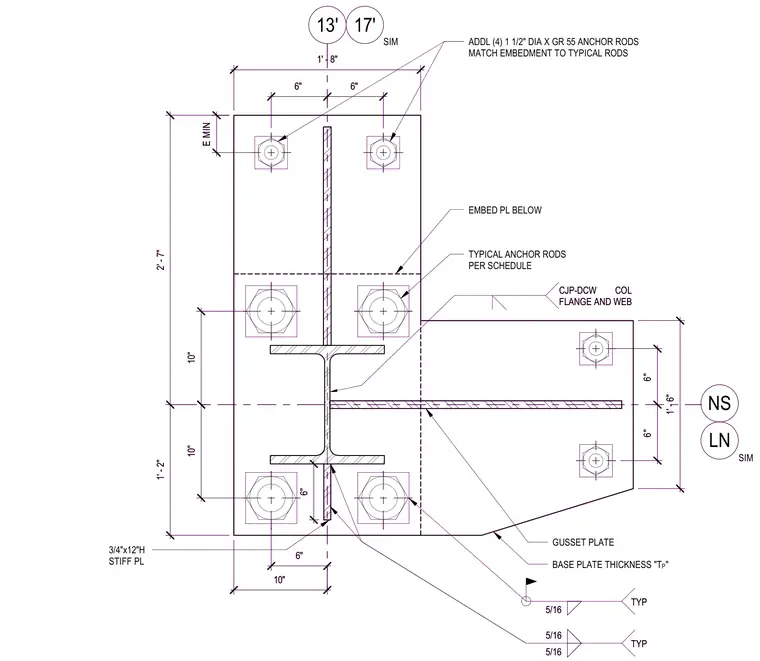

A buckling-restrained braced frame corner base plate connection is anchored with additional one-and-a-half-inch diameter Grade 55 anchor rods matching typical embedment alongside typical anchor rods per schedule. A thick base plate is welded to the column flange and web using complete joint penetration welds, complemented by a gusset plate and three-quarter-inch by twelve-inch high stiffener plates welded with five-sixteenth-inch fillet welds typical. An embed plate sits below the base assembly to transfer lateral and vertical loads into the concrete foundation.
13' NS LN 17' SIM SIM ADDL (4) 1 1/2" DIA X GR 55 ANCHOR RODS MATCH EMBEDMENT TO TYPICAL RODS TYPICAL ANCHOR RODS PER SCHEDULE CJP-DCW COL FLANGE AND WEB GUSSET PLATE BASE PLATE THICKNESS "T P " 6" 6" 1' - 6" 10" 2' - 7" 1' - 2" E MIN 5/16 TYP 6" 6" 1' - 8" EMBED PL BELOW 3/4"x12"H STIFF PL 5/16 5/16 TYP 6" 10" 10" 6" 13' NS LN 17' SIM SIM ADDL (4) 1 1/2" DIA X GR 55 ANCHOR RODS MATCH EMBEDMENT TO TYPICAL RODS TYPICAL ANCHOR RODS PER SCHEDULE CJP-DCW COL FLANGE AND WEB GUSSET PLATE BASE PLATE THICKNESS "T P " 6" 6" 1' - 6" 10" 2' - 7" 1' - 2" E MIN 5/16 TYP 6" 6" 1' - 8" EMBED PL BELOW 3/4"x12"H STIFF PL 5/16 5/16 TYP 6" 10" 10" 6"
