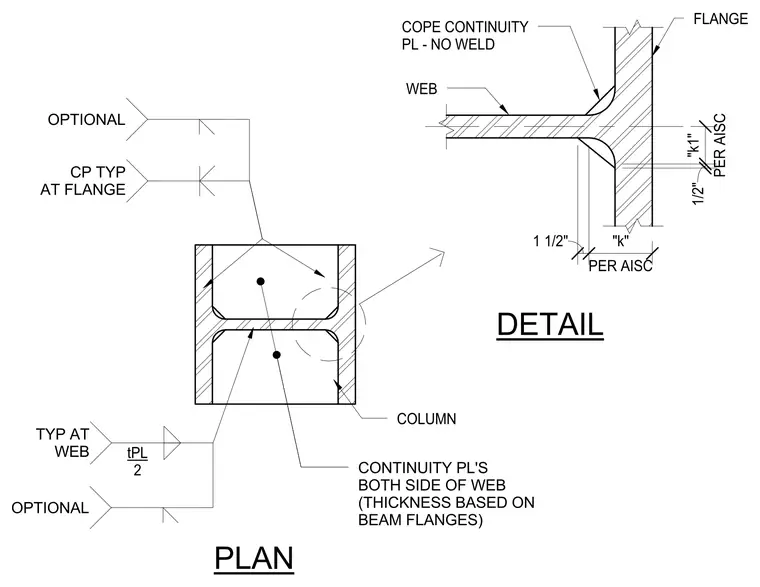

Structural steel continuity plates positioned on both sides of the column web, with thicknesses determined by the connecting beam flanges. Dimensions reference AISC k-distances, including a half-inch clearance and a one-and-a-half-inch offset. The cope at the continuity plate is left unwelded to the column web. Optional weld configurations are indicated for both the web and flange locations.
DETAIL PLAN COLUMN WEB FLANGE COPE CONTINUITY PL - NO WELD 1/2" PER AISC "k1" 1 1/2" PER AISC "k" CONTINUITY PL'S BOTH SIDE OF WEB (THICKNESS BASED ON BEAM FLANGES) OPTIONAL TYP AT WEB tPL 2 OPTIONAL CP TYP AT FLANGE
