Structural · S-TEFZ9

Buckling-Restrained Braced Frame Collar Connection Details

Materials

Steel

Elements

Columns Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Bracing Connection Welded Connection

About this detail

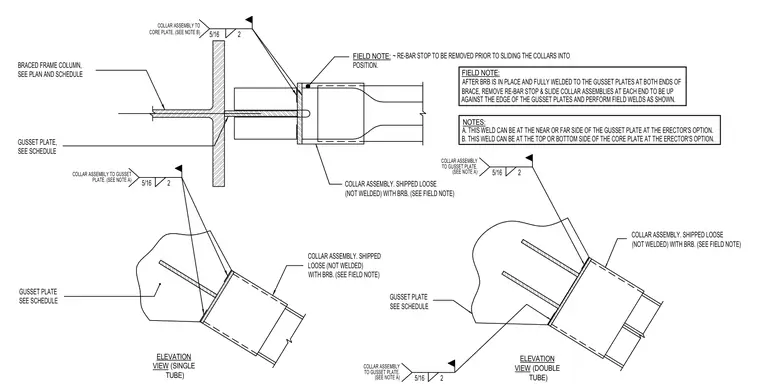

Loose-shipped collar assemblies are installed on single and double tube buckling-restrained braces connected to structural steel gusset plates and columns. The collar assembly is positioned against the edge of the gusset plate after the brace is fully welded, utilizing field-applied fillet welds sized at five-sixteenths of an inch. Field notes instruct the erector to remove the temporary rebar stop prior to sliding the collar into position. Optional weld placements are permitted on either the near or far side of the gusset plate, and on the top or bottom side of the core plate, at the erector's option.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
