A 600S150-54 cold-formed steel track is secured with number ten sheet metal screws spaced at sixteen inches on center typically at tracks. Studs are installed per the schedule below with a one and one-half inch minimum lip at tracks typically.

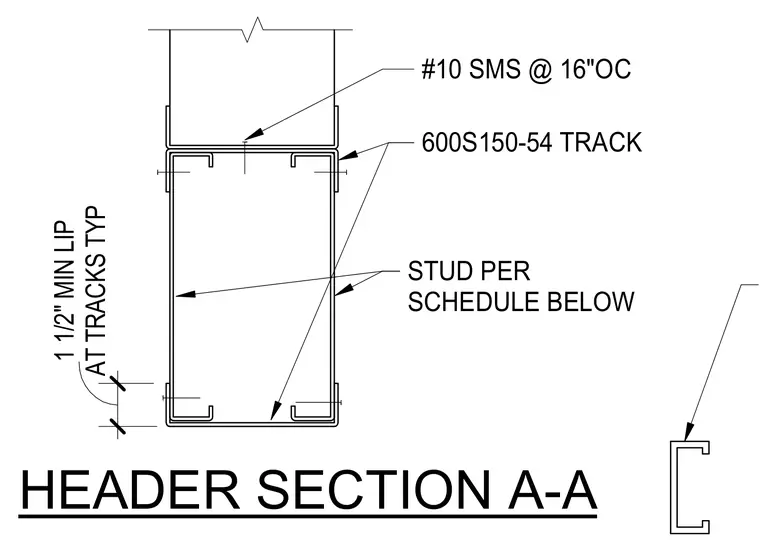

HEADER SECTION A-A 600S150-54 TRACK STUD PER SCHEDULE BELOW #10 SMS @ 16"OC AT TRACKS TYP 1 1/2" MIN LIP
