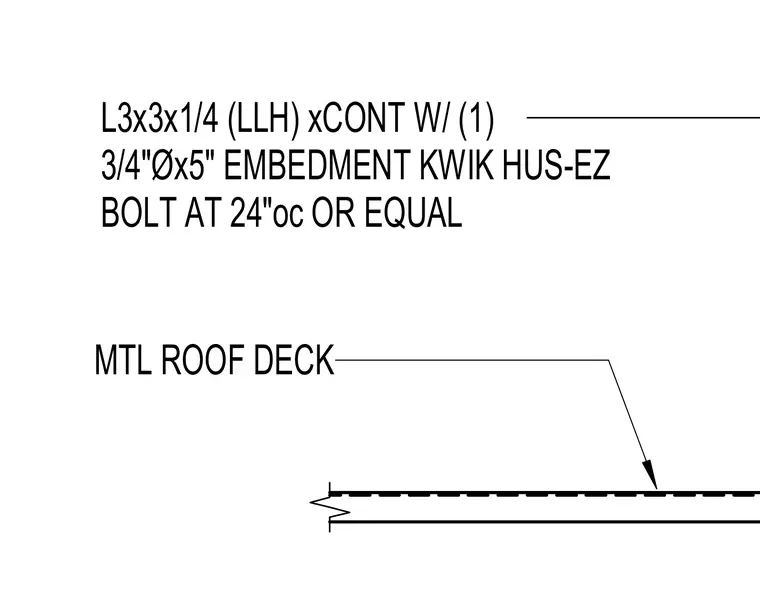

A continuous L3x3x1/4 angle with long leg horizontal is anchored over a metal roof deck. Fastening is provided by one three-quarter-inch diameter by five-inch embedment Kwik Hus-Ez anchor bolt spaced at twenty-four inches on center or equal.
MTL ROOF DECK L3x3x1/4 (LLH) xCONT W/ (1) 3/4"Øx5" EMBEDMENT KWIK HUS-EZ BOLT AT 24"oc OR EQUAL
