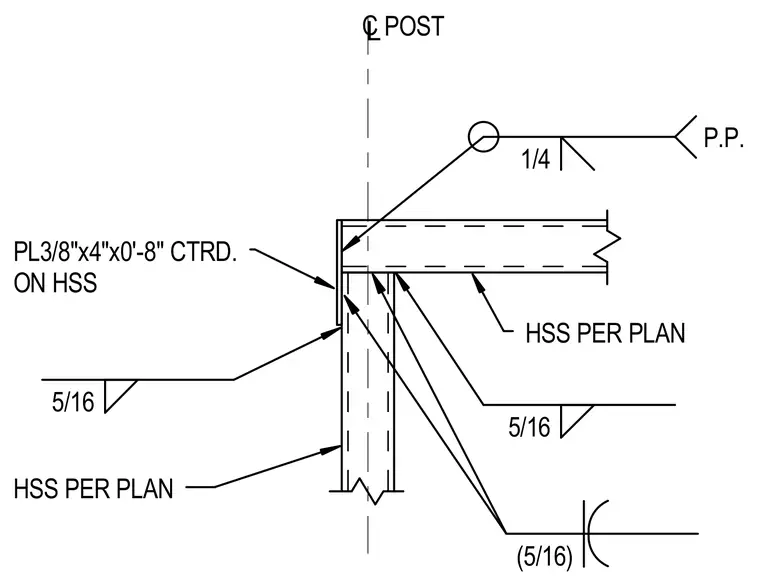

A hollow structural section post connects to a perpendicular hollow structural section member sized per plan. A three-eighths-inch by four-inch by zero-foot-eight-inch plate is centered on the hollow structural section. Five-sixteenths-inch fillet welds secure the connection at the plate and members.
5/16 L C POST 1/4 P.P. HSS PER PLAN HSS PER PLAN 5/16 (5/16) PL3/8"x4"x0'-8" CTRD. ON HSS
