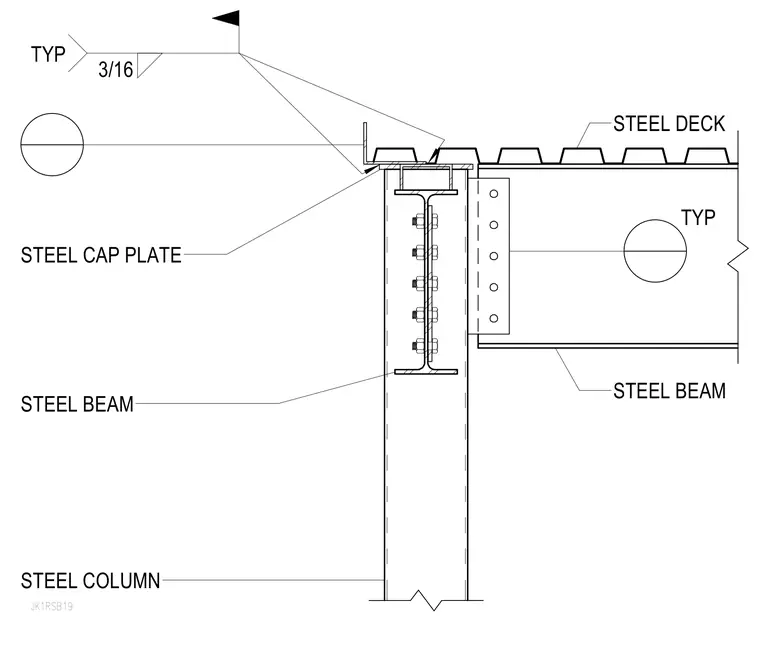

A steel beam connects to a vertical steel column using a bolted shear tab and is topped by a steel cap plate. A three-sixteenths inch fillet weld secures the assembly at the column and cap plate junction. Corrugated steel deck bears across the top of the connection.
JK1RSB19 STEEL COLUMN STEEL DECK STEEL CAP PLATE 3/16 TYP STEEL BEAM STEEL BEAM TYP
