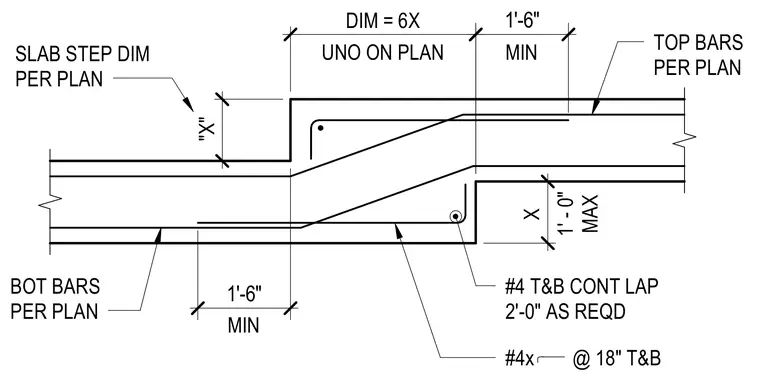

This concrete slab step detail shows the transition between two different elevation levels in a structural slab. Top and bottom reinforcing bars continue through the step with specified lap lengths and dimensional limits. Number four bars are spaced at eighteen inches top and bottom as required by plan dimensions.
1'-6" 36" 1'-6" 12" 12" BOT BARS PER PLAN #4 T&B CONT LAP 2'-0" AS REQD #4x @ 18" T&B TOP BARS PER PLAN SLAB STEP DIM PER PLAN 1' - 0" MAX "X" DIM = 6X UNO ON PLAN MIN X MIN
