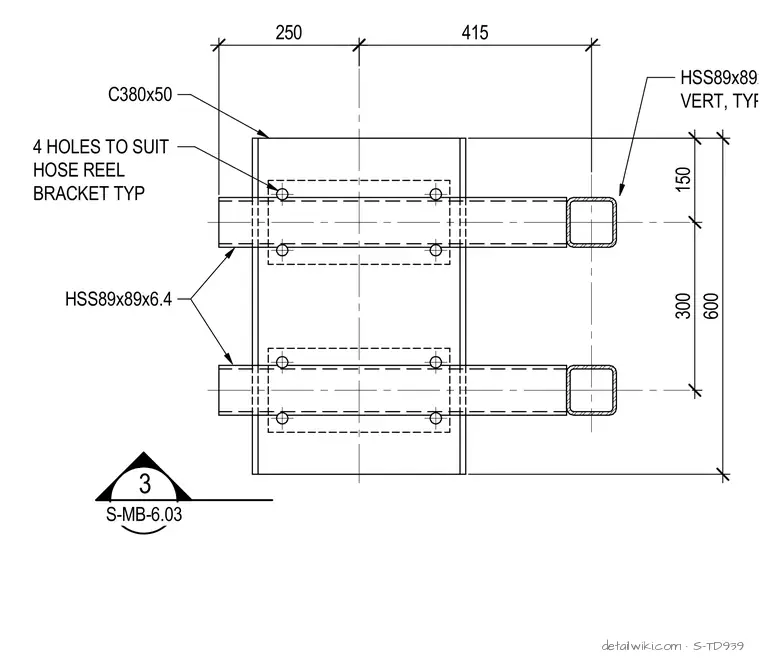

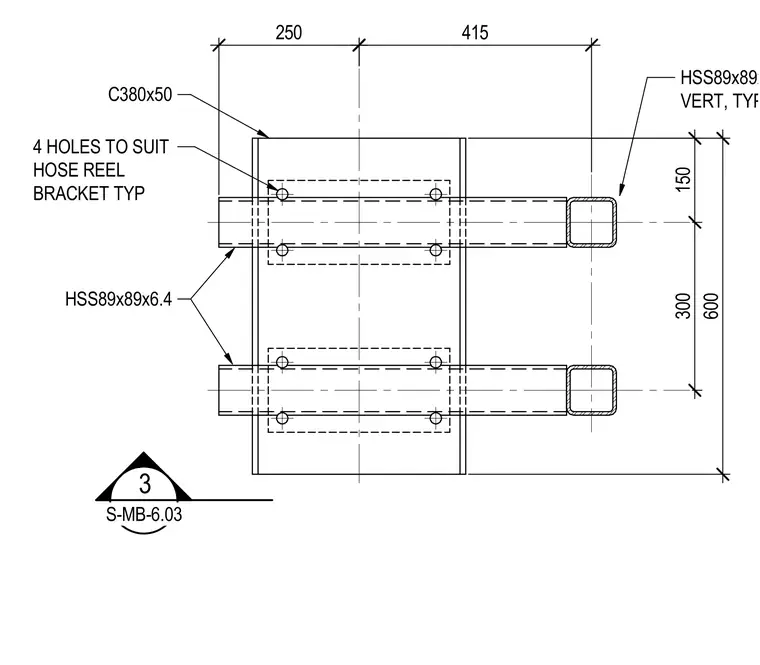

The assembly features two horizontal hollow structural section (HSS89x89x6.4) members framing into or supported by a vertical channel section (C380x50). Each HSS member includes four pre-drilled holes sized to suit a hose reel bracket, with overall dimensions and spacing clearly indicated. The drawing provides dimensional layout data for fabrication and installation of the equipment support framing.
Text on the drawing
250 600 300 150 HSS89x89x6.4 4 HOLES TO SUIT HOSE REEL BRACKET TYP C380x50 415 HSS89x89x6.4 VERT, TYP 3 S-MB-6.03
