Structural · S-TD8N9

Cantilever thru Equal-Depth Beam

Materials

Steel

Elements

Columns Beams Floors / Slabs Connections / Plates

Connections

Moment Connection Shear Tab / Single Plate

About this detail

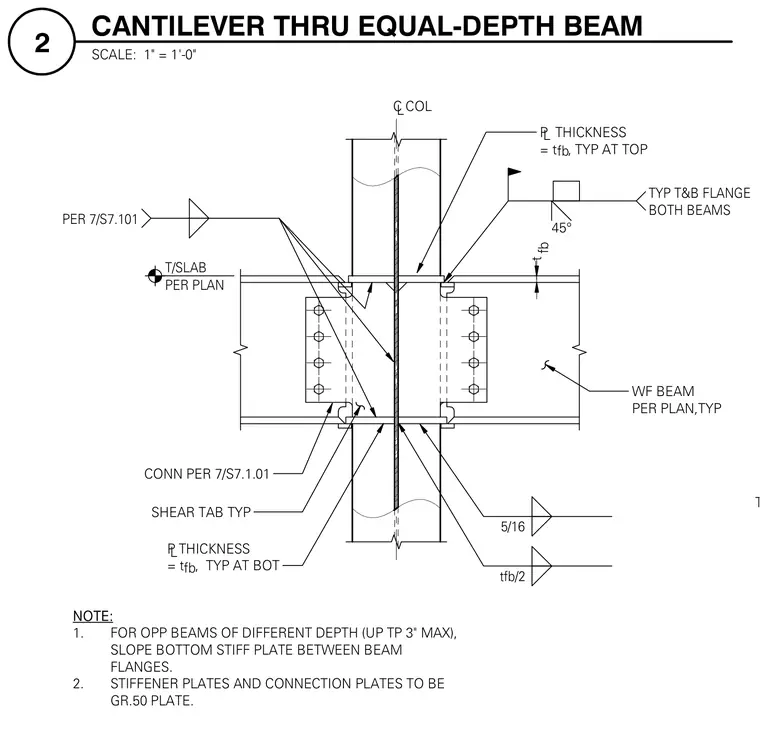

A cantilever through-beam connection occurs at a wide-flange steel column centerline. Wide-flange beams frame into both sides of the column with top and bottom flange connections. Plate thickness at the top and bottom matches the flange thickness, with Grade 50 steel specified for all stiffener and connection plates. Shear tabs are provided typically at each end connection, welded with a five-sixteenths inch fillet weld or half the flange thickness. For opposing beams of different depths up to a three-inch maximum, the bottom stiffener plate between beam flanges is sloped accordingly.
