Structural · S-TD8KC

Steel Beam Web Opening Size and Spacing Criteria

Materials

Composite

Elements

Beams Roof / Floor Openings

Connections

Shear Stud / Composite

About this detail

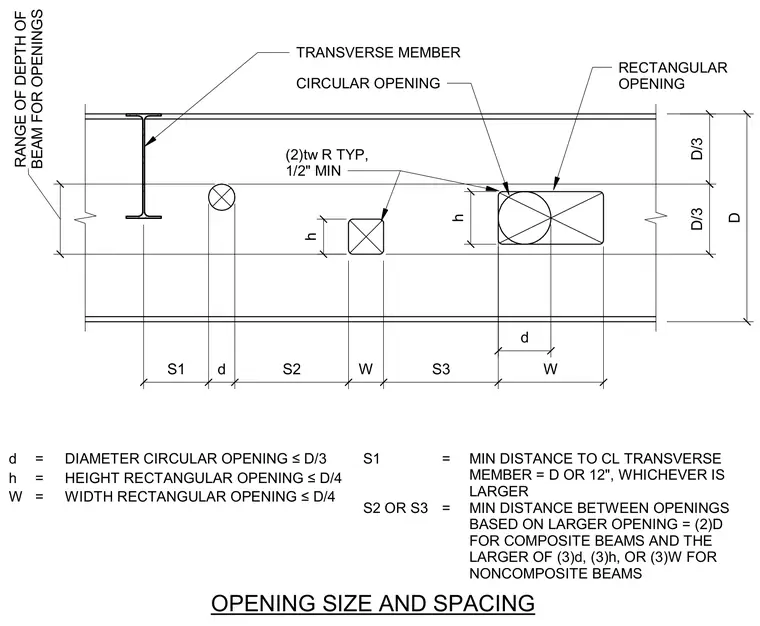

This structural detail outlines dimensional criteria for circular and rectangular web openings in steel beams. Circular openings are restricted to a maximum diameter of one-third the beam depth, while rectangular openings are limited to one-fourth the beam depth and width. Corners of rectangular openings require a radius of two times the web thickness with a one-half-inch minimum. Minimum spacing requirements depend on whether the beam is composite or noncomposite, along with distance limitations from transverse members.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
