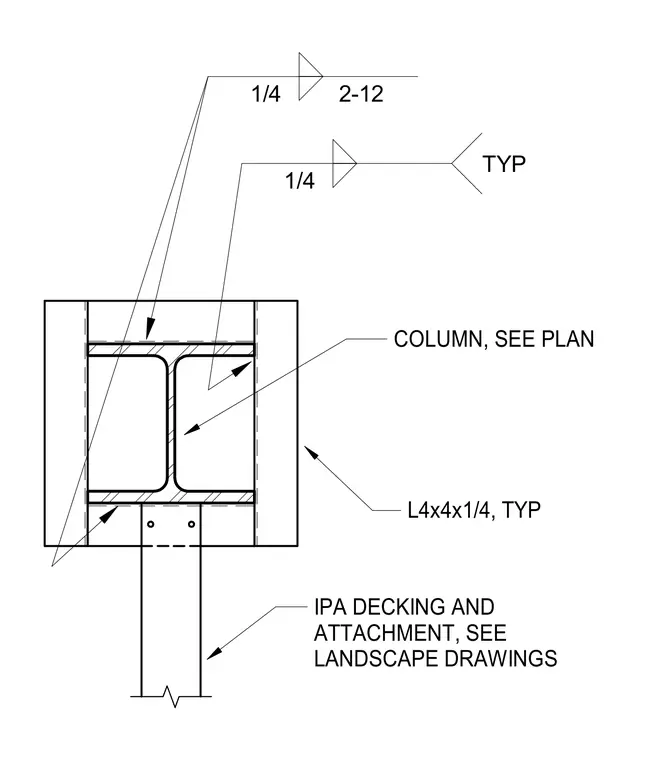

Ipe decking is attached to a structural steel column and framed with typical L4x4x1/4 angles welded with quarter-inch fillet welds. The column size and layout are referenced per plan, and the decking attachment details are coordinated with the landscape drawings.
COLUMN, SEE PLAN L4x4x1/4, TYP IPA DECKING AND ATTACHMENT, SEE LANDSCAPE DRAWINGS 1/4 TYP 1/4 2-12
