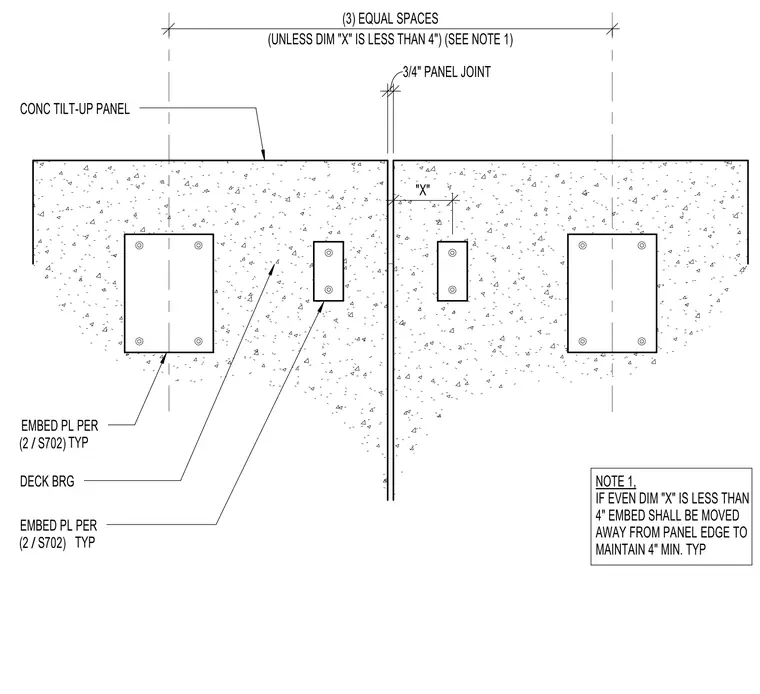

Embed plates at a three-quarter-inch concrete tilt-up panel joint span across three equal spaces unless dimension "X" is less than four inches, in which case the embed plate must be relocated away from the panel edge to maintain a four-inch minimum edge distance. Typical embed plates are specified per sheet S702 alongside deck bearing conditions.
(UNLESS DIM "X" IS LESS THAN 4") (SEE NOTE 1) (3) EQUAL SPACES 3/4" PANEL JOINT "X" CONC TILT-UP PANEL DECK BRG EMBED PL PER TYP EMBED PL PER TYP NOTE 1, IF EVEN DIM "X" IS LESS THAN 4" EMBED SHALL BE MOVED AWAY FROM PANEL EDGE TO MAINTAIN 4" MIN. TYP / (2 S702) / (2 S702)
