Metal deck splice detail showing a maximum one-half inch gap where the deck type changes per plan over structural framing.

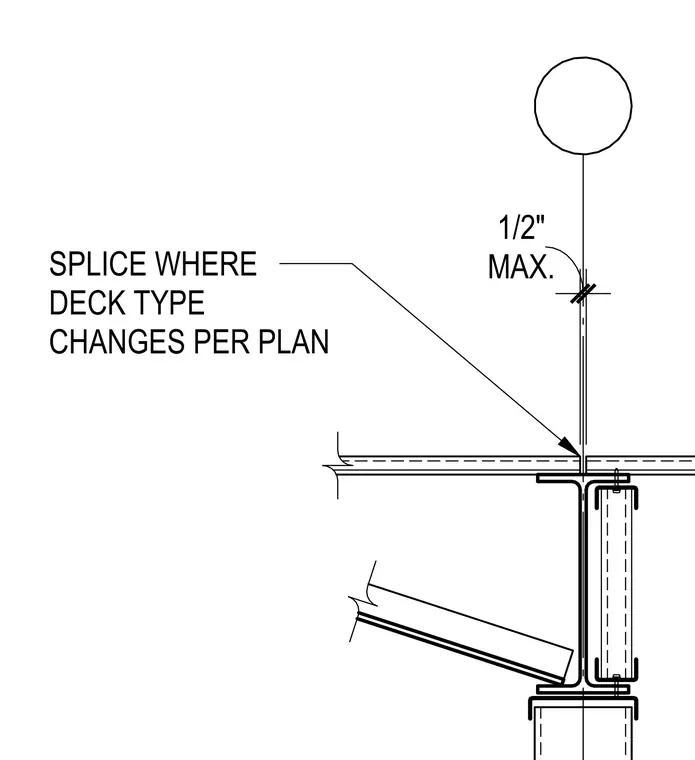

MAX. 1/2" SPLICE WHERE DECK TYPE CHANGES PER PLAN
