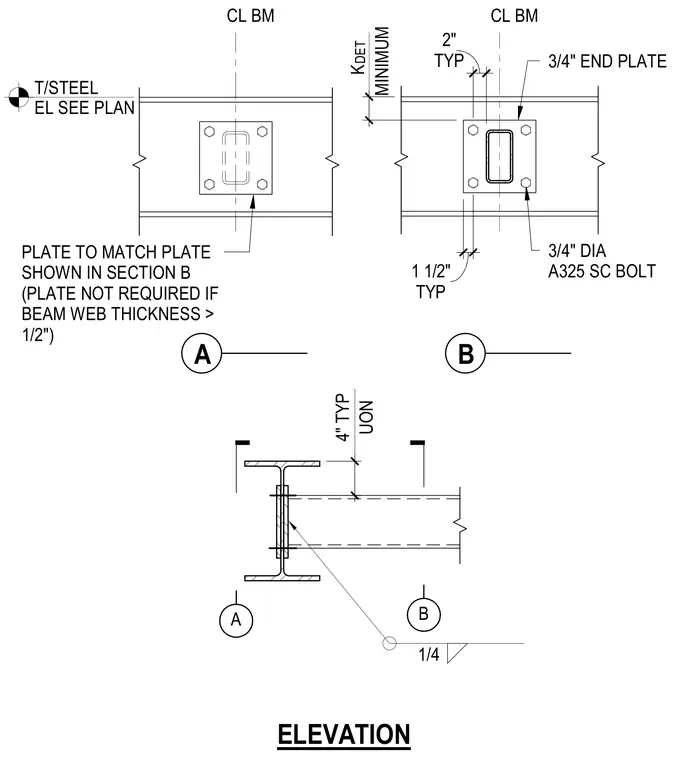

A bolted end plate connection utilizes three-quarter-inch diameter A325 slip-critical bolts and a three-quarter-inch end plate welded to the beam web. A matching plate is required unless the supporting beam web thickness exceeds one-half inch. Typical edge distances and spacing dimensions are provided for positioning the connection relative to the beam centerline.
B A 3/4" DIA A325 SC BOLT 3/4" END PLATE ELEVATION UON 4" TYP MINIMUM K DET PLATE TO MATCH PLATE SHOWN IN SECTION B (PLATE NOT REQUIRED IF BEAM WEB THICKNESS > 1/2") T/STEEL EL SEE PLAN 1/4 TYP 1 1/2" TYP 2" A B CL BM CL BM
