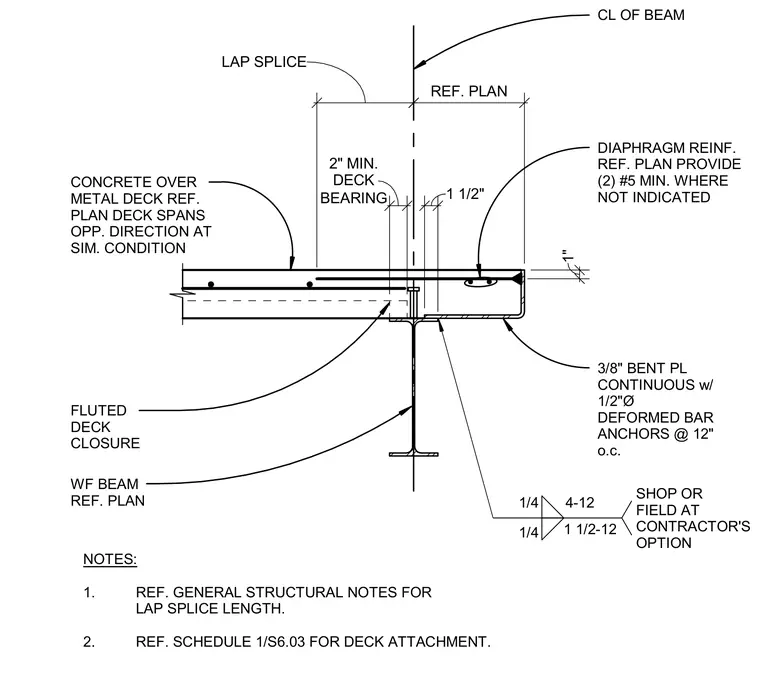

Concrete over metal deck bears on a wide-flange beam with a minimum two-inch deck bearing and a fluted deck closure. A continuous three-eighths-inch bent plate with one-half-inch-diameter deformed bar anchors spaced at twelve inches on center is welded to the beam flange with quarter-inch fillet welds, applied shop or field at the contractor's option. Diaphragm reinforcement consisting of at least two number five bars is provided where not indicated, with lap splices conforming to general structural notes.
CL OF BEAM DIAPHRAGM REINF. REF. PLAN PROVIDE (2) #5 MIN. WHERE NOT INDICATED WF BEAM REF. PLAN FLUTED DECK CLOSURE CONCRETE OVER METAL DECK REF. PLAN DECK SPANS OPP. DIRECTION AT SIM. CONDITION BEARING 2" MIN. DECK 3/8" BENT PL CONTINUOUS w/ 1/2"Ø DEFORMED BAR ANCHORS @ 12" o.c. 1/4 1/4 4-12 SHOP OR FIELD AT CONTRACTOR'S OPTION LAP SPLICE 1" 1 1/2" REF. PLAN NOTES: 1. REF. GENERAL STRUCTURAL NOTES FOR LAP SPLICE LENGTH. 2. REF. SCHEDULE 1/S6.03 FOR DECK ATTACHMENT. 1 1/2-12
