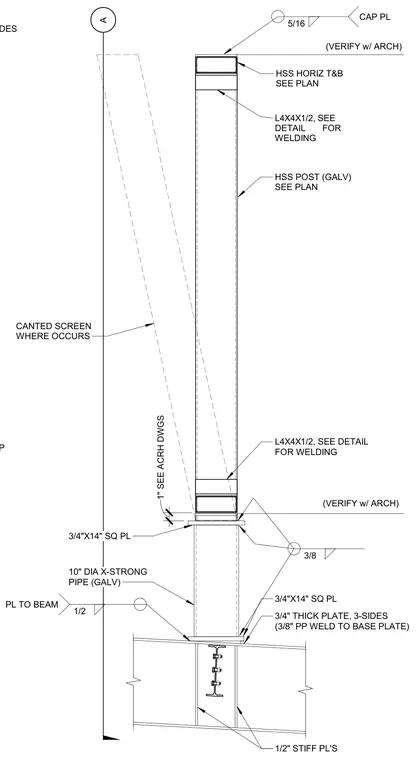

A galvanized hollow structural section post is capped with a five-sixteenth-inch plate welded with a five-sixteenth-inch fillet weld and connected top and bottom to horizontal members per plan. The post sits on a three-quarter-inch by fourteen-inch square plate supported by a ten-inch diameter extra-strong galvanized pipe column. The pipe column features half-inch plate connections to the beam below, reinforced with three-quarter-inch thick plates on three sides using three-eighths-inch partial penetration welds to the base plate. Structural steel angles measuring four-by-four-by-half-inch attach at intermediate points with welding detailed elsewhere, and a canted screen connects as required, verified with architectural drawings.
A HSS HORIZ T&B SEE PLAN HSS POST (GALV) SEE PLAN CAP PL 5/16 TYP 1/2" STIFF PL'S 3/8 3/4" THICK PLATE, 3-SIDES (3/8" PP WELD TO BASE PLATE) L4X4X1/2, SEE DETAIL FOR WELDING (VERIFY w/ ARCH) BOTH SIDES 3/4"X14" SQ PL 10" DIA X-STRONG PIPE (GALV) 1" SEE ACRH DWGS L4X4X1/2, SEE DETAIL FOR WELDING 3/4"X14" SQ PL CANTED SCREEN WHERE OCCURS (VERIFY w/ ARCH) PL TO BEAM 1/2
