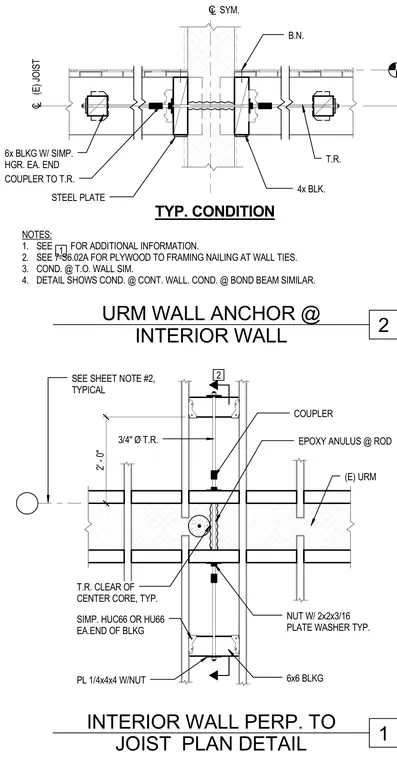

Connection between an existing unreinforced masonry wall and perpendicular framing joists using three-quarter-inch threaded rods and steel plates. Epoxy is applied to the annular space around the threaded rod penetrating the masonry, secured with a nut and a two-inch by two-inch by three-sixteenth-inch plate washer on the exterior face. The threaded rod spans inward through a coupler and connects to six-by-six blocking anchored with Simpson HUC66 or HU66 hangers at each end. Additional notes indicate typical conditions at top-of-wall and continuous bond beam applications, requiring the threaded rod to clear the center core of the masonry.
EPOXY ANULUS @ ROD (E) URM 2 NUT W/ 2x2x3/16 PLATE WASHER TYP. 3/4" Ø T.R. COUPLER PL 1/4x4x4 W/NUT SIMP. HUC66 OR HU66 EA.END OF BLKG 6x6 BLKG 2' - 0" SEE SHEET NOTE #2, TYPICAL T.R. CLEAR OF CENTER CORE, TYP. TYP. CONDITION CL SYM. COUPLER TO T.R. B.N. T.R. 4x BLK. 6x BLKG W/ SIMP. HGR. EA. END NOTES: 1. SEE FOR ADDITIONAL INFORMATION. 2. SEE 7-S6.02A FOR PLYWOOD TO FRAMING NAILING AT WALL TIES. 3. COND. @ T.O. WALL SIM. 4. DETAIL SHOWS COND. @ CONT. WALL. COND. @ BOND BEAM SIMILAR. 1 L C (E) JOIST STEEL PLATE 1 INTERIOR WALL PERP. TO JOIST PLAN DETAIL 2 URM WALL ANCHOR @ INTERIOR WALL
