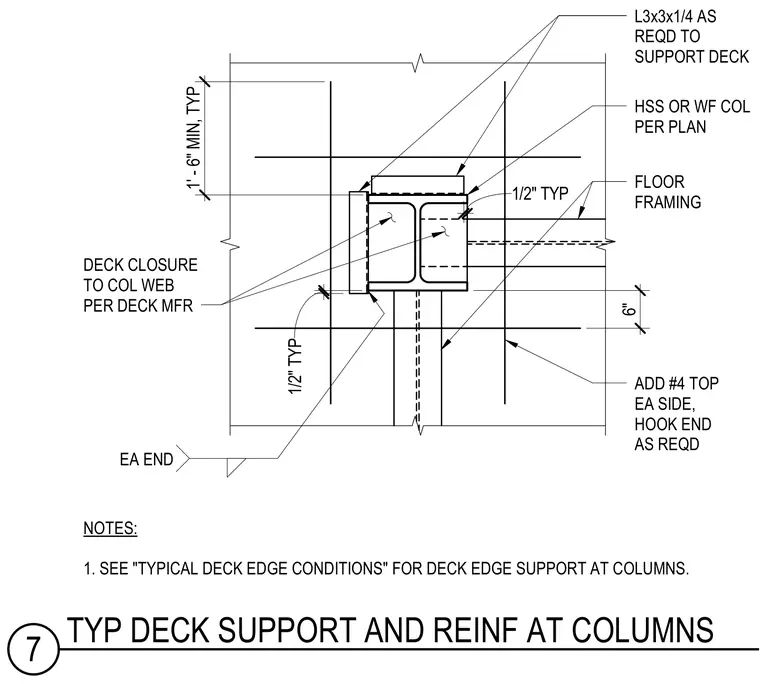

An L3x3x1/4 angle is provided as required to support the metal deck adjacent to a hollow structural section or wide flange column specified per plan. Additional number 4 top reinforcing bars are placed on each side with hook ends as required, extending a minimum of one foot six inches. Deck closure to the column web is installed per the deck manufacturer requirements.
1' - 6" MIN, TYP 6" ADD #4 TOP EA SIDE, HOOK END AS REQD HSS OR WF COL PER PLAN FLOOR FRAMING L3x3x1/4 AS REQD TO SUPPORT DECK DECK CLOSURE TO COL WEB PER DECK MFR EA END NOTES: 1. SEE "TYPICAL DECK EDGE CONDITIONS" FOR DECK EDGE SUPPORT AT COLUMNS. 1/2" TYP 1/2" TYP 7 TYP DECK SUPPORT AND REINF AT COLUMNS
