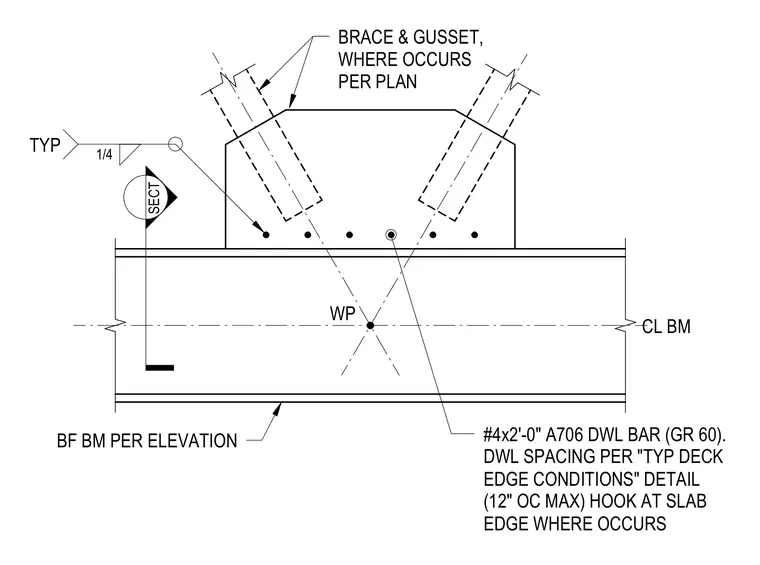

A structural steel bracing connection features a gusset plate welded to a beam with a typical one-quarter inch fillet weld. Diagonal braces frame into the gusset plate at a defined working point per plan. A number four by two-foot grade sixty A706 dowel bar is anchored with a spacing of twelve inches on center maximum, including a hook at the slab edge where applicable. The beam size and configuration are detailed per elevation and plan requirements.
SECT WP CL BM #4x2'-0" A706 DWL BAR (GR 60). DWL SPACING PER "TYP DECK EDGE CONDITIONS" DETAIL (12" OC MAX) HOOK AT SLAB EDGE WHERE OCCURS BF BM PER ELEVATION BRACE & GUSSET, WHERE OCCURS PER PLAN TYP 1/4
