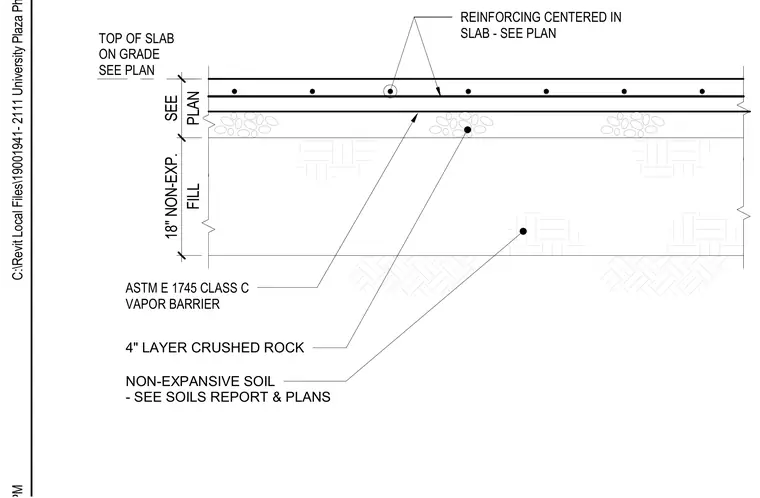

The assembly features a concrete slab on grade placed over an ASTM E 1745 Class C vapor barrier and a four-inch layer of crushed rock. Steel reinforcing is centered within the slab thickness per structural plans. Below the sub-base layer, an eighteen-inch depth of non-expansive soil fill is placed over native ground as specified in the soils report.
TOP OF SLAB ON GRADE SEE PLAN NON-EXPANSIVE SOIL - SEE SOILS REPORT & PLANS ASTM E 1745 CLASS C VAPOR BARRIER 4" LAYER CRUSHED ROCK REINFORCING CENTERED IN SLAB - SEE PLAN FILL 18" NON-EXP. PLAN SEE . C:\Revit Local Files\19001941- 2111 University Plaza Phase 2_R20_Joseph.M.Gulden.rvt
