Structural · S-TBRCR

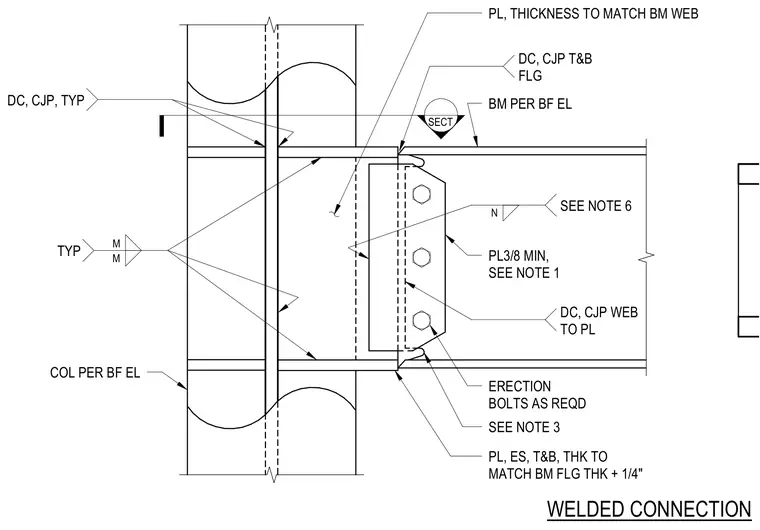

Welded Moment Connection at Steel Column

Materials

weld

Elements

Connections / Plates

Connections

Welded Connection Bolted Connection

About this detail

A steel beam connects to a structural steel column using complete joint penetration groove welds at the top and bottom flanges. A web plate with a minimum thickness of three-eighths of an inch is welded to the column and utilizes erection bolts as required. Additional top and bottom plates match the beam flange thickness plus one-quarter inch. Complete joint penetration welds secure the web to the plate as specified in the drawing notes.
