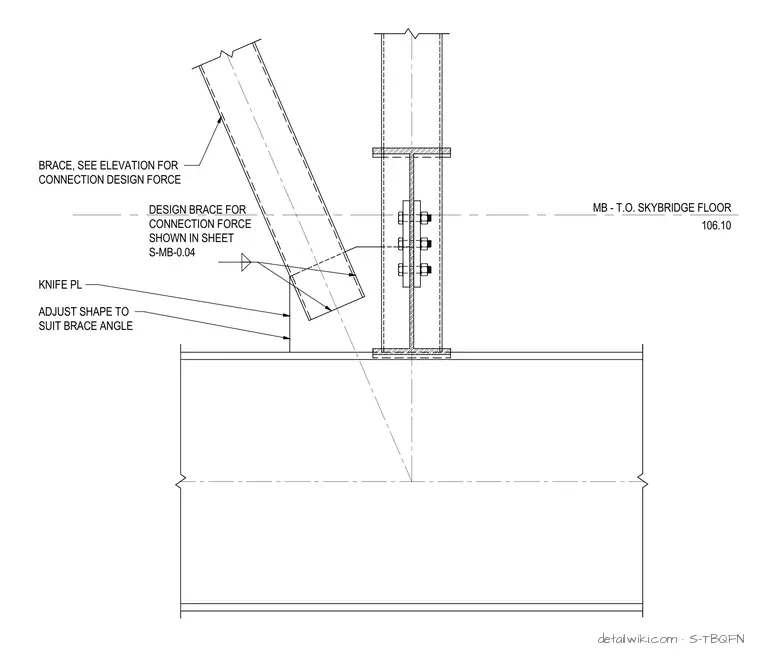

The detail illustrates a diagonal brace connected via a knife plate to a structural steel member and floor slab assembly. Key components include the diagonal brace, a knife plate, a vertical column with a bolted splice or connection, and reference lines for skybridge floor levels. The callouts specify requirements for adjusting the shape to suit the brace angle and referencing connection design forces.
Text on the drawing
BRACE, SEE ELEVATION FOR CONNECTION DESIGN FORCE KNIFE PL ADJUST SHAPE TO SUIT BRACE ANGLE DESIGN BRACE FOR CONNECTION FORCE SHOWN IN SHEET S-MB-0.04 MB - T.O. SKYBRIDGE FLOOR 106.10
