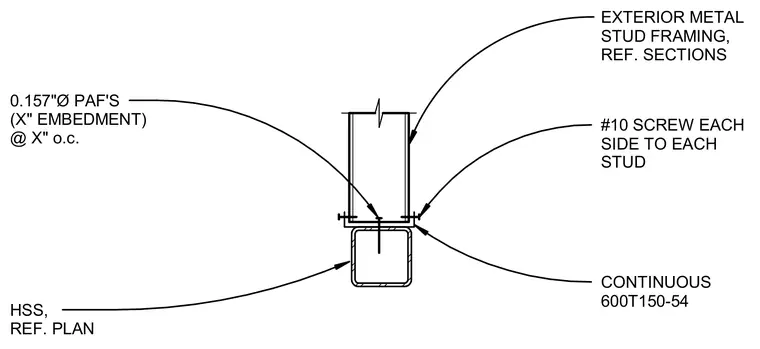

Exterior metal stud framing is secured to a hollow structural section steel support using a continuous 600T150-54 track member. The track is fastened to the hollow structural section using 0.157-inch-diameter powder-actuated fasteners with specified embedment spaced on center. Number 10 screws are installed on each side of the track to each stud for lateral connection.
EXTERIOR METAL STUD FRAMING, REF. SECTIONS #10 SCREW EACH SIDE TO EACH STUD CONTINUOUS 600T150-54 HSS, REF. PLAN 0.157"Ø PAF'S (X" EMBEDMENT) @ X" o.c.
