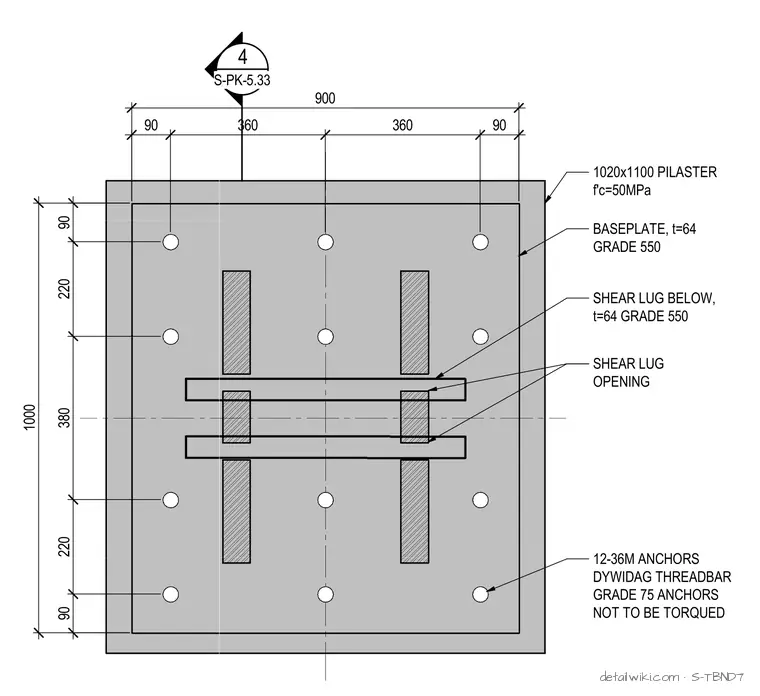

A 1020x1100 millimeter concrete pilaster with a compressive strength of 50 megapascals supports a 64 millimeter thick Grade 550 steel base plate. The assembly is secured by twelve 36M Dywidag threadbar anchors of Grade 75 steel, which are specified not to be torqued. Two parallel shear lugs with 64 millimeter thickness and Grade 550 steel are positioned below the plate and run through designated shear lug openings in the base plate. The anchoring layout features symmetric spacing with edge distances and center-to-center dimensions measuring 90, 220, 360, and 380 millimeters across the 1000 millimeter wide assembly.
900 90 360 360 90 1000 90 220 380 220 90 12-36M ANCHORS DYWIDAG THREADBAR GRADE 75 ANCHORS NOT TO BE TORQUED SHEAR LUG OPENING SHEAR LUG BELOW, t=64 GRADE 550 BASEPLATE, t=64 GRADE 550 1020x1100 PILASTER f'c=50MPa 4 S-PK-5.33
