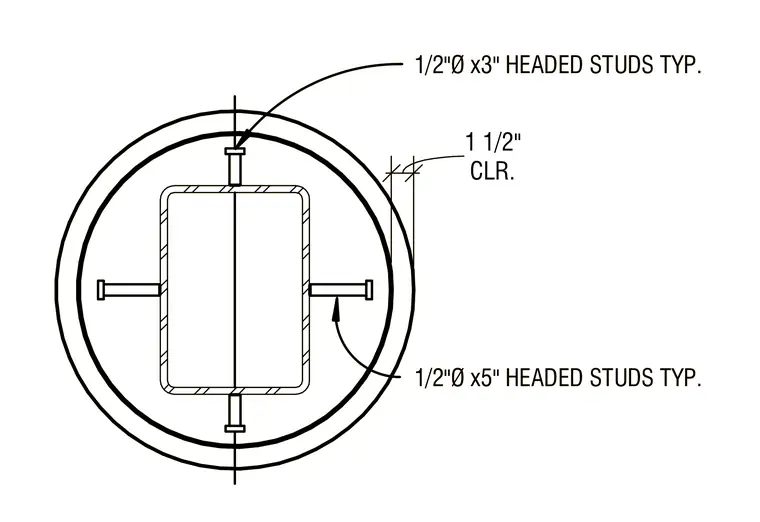

A rectangular hollow structural section is positioned concentrically inside a larger circular steel member, tied together with welded headed shear studs. The top and bottom of the inner section feature typical one-half-inch diameter by three-inch headed studs welded to the face. The sides feature typical one-half-inch diameter by five-inch headed studs spanning a one-and-one-half-inch clearance to the outer circular boundary.
CLR. 1 1/2" 1/2"Ø x3" HEADED STUDS TYP. 1/2"Ø x5" HEADED STUDS TYP. CLR. 1 1/2" 1/2"Ø x3" HEADED STUDS TYP. 1/2"Ø x5" HEADED STUDS TYP.
