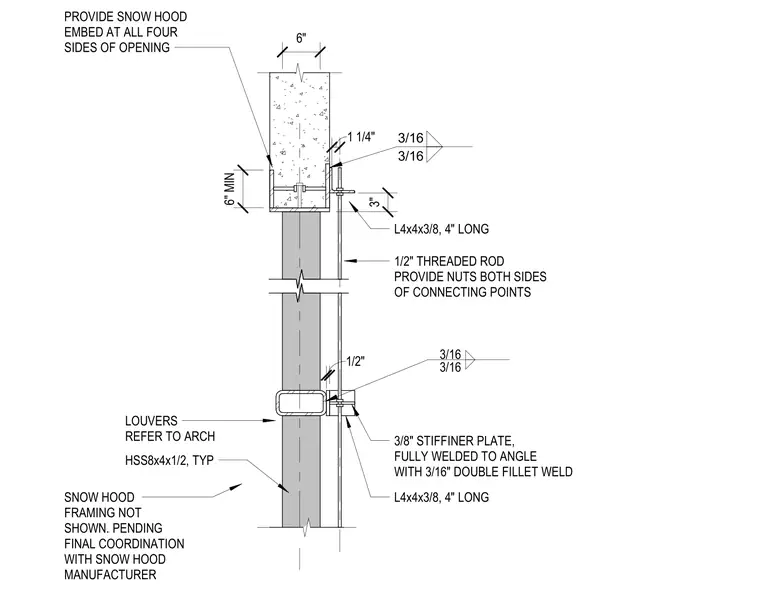

This assembly supports a louver system using a 1/2-inch diameter threaded rod connected to a concrete tilt-up wall panel. The rod is secured at the top to a 4-inch long L4x4x3/8 angle, which is attached to a concrete embed with 3/16-inch fillet welds. The rod extends downward to support an HSS8x4x1/2 member, which serves as the louver frame. This lower connection utilizes a 4-inch long L4x4x3/8 angle reinforced with a 3/8-inch stiffener plate, fully welded to the angle with 3/16-inch double fillet welds. Nuts are provided on both sides of all connecting points along the threaded rod. A snow hood embed is required at all four sides of the wall opening with a 6-inch minimum clearance.
Text on the drawing
6" 3/16 3/16 1/2" THREADED ROD PROVIDE NUTS BOTH SIDES OF CONNECTING POINTS L4x4x3/8, 4" LONG 3/16 3/16 3" 1 1/4" 1/2" PROVIDE SNOW HOOD EMBED AT ALL FOUR SIDES OF OPENING 6" MIN
