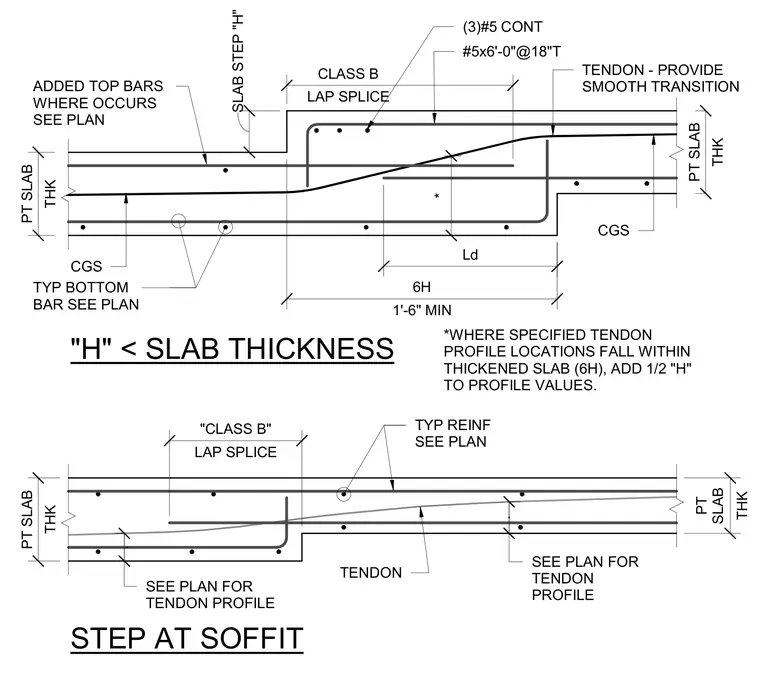

A structural height transition in a post-tensioned concrete slab where the step height is less than the overall slab thickness. The assembly features continuous bottom reinforcement, three continuous number five top bars, and transverse number five bars spaced at eighteen inches on center. Post-tensioned tendons maintain a smooth transition profile across the thickened slab zone spanning six times the step height. Additional top bars and typical bottom bar configurations are provided per structural plans. A class B lap splice with a one-foot six-inch minimum length connects the reinforcing steel across the step junction.
"H" < SLAB THICKNESS STEP AT SOFFIT CGS TENDON #5x6'-0"@18"T (3)#5 CONT CGS TYP REINF SEE PLAN SEE PLAN FOR TENDON PROFILE SEE PLAN FOR TENDON PROFILE ADDED TOP BARS WHERE OCCURS SEE PLAN TYP BOTTOM BAR SEE PLAN TENDON - PROVIDE SMOOTH TRANSITION *WHERE SPECIFIED TENDON PROFILE LOCATIONS FALL WITHIN THICKENED SLAB (6H), ADD 1/2 "H" TO PROFILE VALUES. Ld LAP SPLICE CLASS B 1'-6" MIN 6H * SLAB STEP "H" THK PT SLAB THK PT SLAB THK PT SLAB . LAP SPLICE "CLASS B" . . THK PT SLAB
