Structural · S-TBGSX

Concrete Tilt-Up Wall Corner Connection Detail

Materials

Concrete Steel

Elements

Walls Roofs Decks Insulation Anchors / Embeds Connections / Plates

Connections

Welded Connection Shear Stud / Composite Embed Plate

About this detail

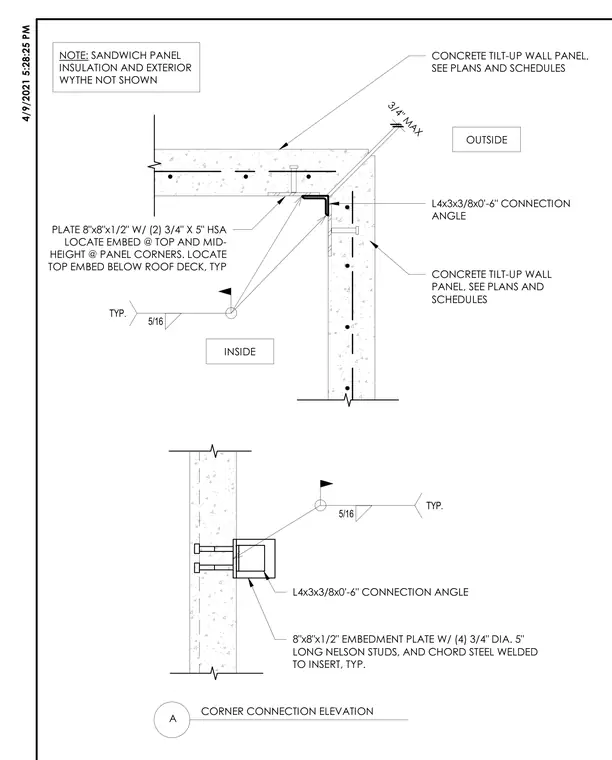

An L4x3x3/8-inch by 0-foot-6-inch connection angle welds to an 8-inch by 8-inch by 1/2-inch embedment plate with four 3/4-inch diameter by 5-long Nelson studs at a concrete tilt-up wall corner connection. An alternate embedment plate detail features an 8-inch by 8-inch by 1/2-inch plate with two 3/4-inch by 5-inch HSA anchors located at the top and mid-height of the panel corners, positioned just below the roof deck. A five-sixteenths-inch typical fillet weld secures the steel components together at the corner joint, maintaining a 3/4-inch maximum gap between panels. Sandwich panel insulation and exterior wythe are omitted for clarity.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
