An upturned built-up steel beam supports an assembly with precast elements detailed elsewhere by others. A steel beam kicker brace is spaced at four feet zero inches on center between beams with orientation per plan. Additional coordination references direct the builder to the built-up wide flange schedule, typical steel deck details, beam kicker brace, steel edge beam stiffeners, and deck edge conditions.

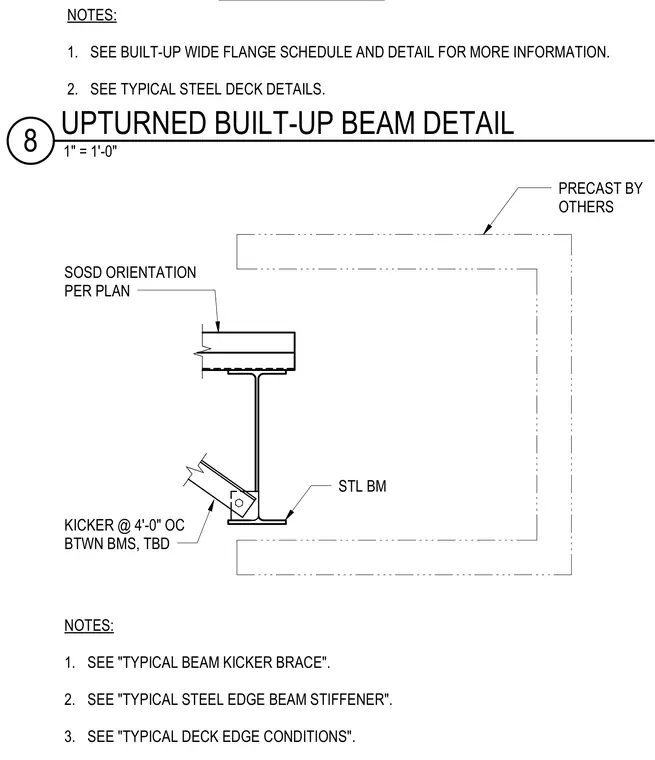

TOP FLANGE > 3" NOTES: 1. SEE BUILT-UP WIDE FLANGE SCHEDULE AND DETAIL FOR MORE INFORMATION. 2. SEE TYPICAL STEEL DECK DETAILS. NOTES: 1. SEE "TYPICAL BEAM KICKER BRACE". 2. SEE "TYPICAL STEEL EDGE BEAM STIFFENER". 3. SEE "TYPICAL DECK EDGE CONDITIONS". SOSD ORIENTATION PER PLAN PRECAST BY OTHERS STL BM KICKER @ 4'-0" OC BTWN BMS, TBD 1" = 1'-0" 8 UPTURNED BUILT-UP BEAM DETAIL
