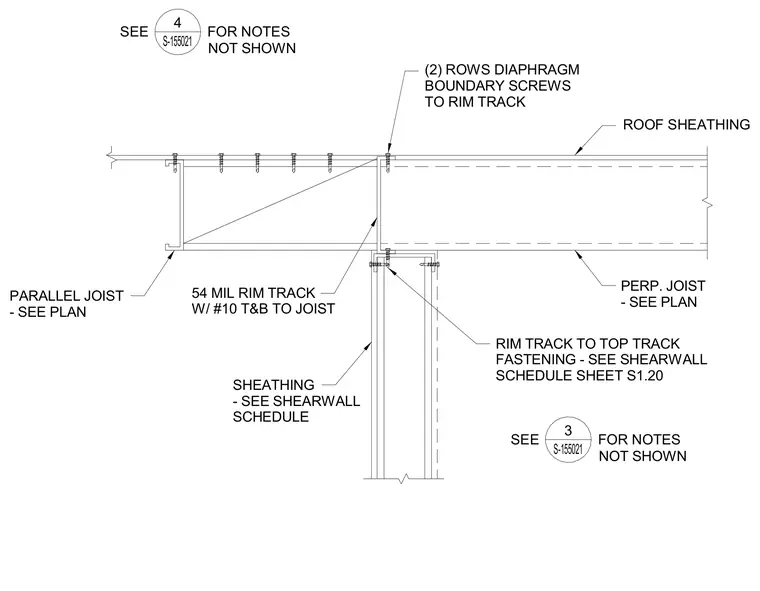

A fifty-four mil rim track connects to a top track in a cold-formed steel framing system. Roof sheathing bears over parallel and perpendicular joists, with two rows of diaphragm boundary screws securing the sheathing to the rim track. The rim track connects to the top track using number ten top and bottom screws sized per the shearwall schedule on sheet S-1.20. Additional sheathing requirements and notes are referenced on sheet S-155021.
NOT SHOWN SEE FOR NOTES NOT SHOWN SEE FOR NOTES PARALLEL JOIST - SEE PLAN PERP. JOIST - SEE PLAN RIM TRACK TO TOP TRACK FASTENING - SEE SHEARWALL SCHEDULE SHEET S1.20 SHEATHING - SEE SHEARWALL SCHEDULE (2) ROWS DIAPHRAGM BOUNDARY SCREWS TO RIM TRACK ROOF SHEATHING 3 S-155021 4 S-155021 54 MIL RIM TRACK W/ #10 T&B TO JOIST
