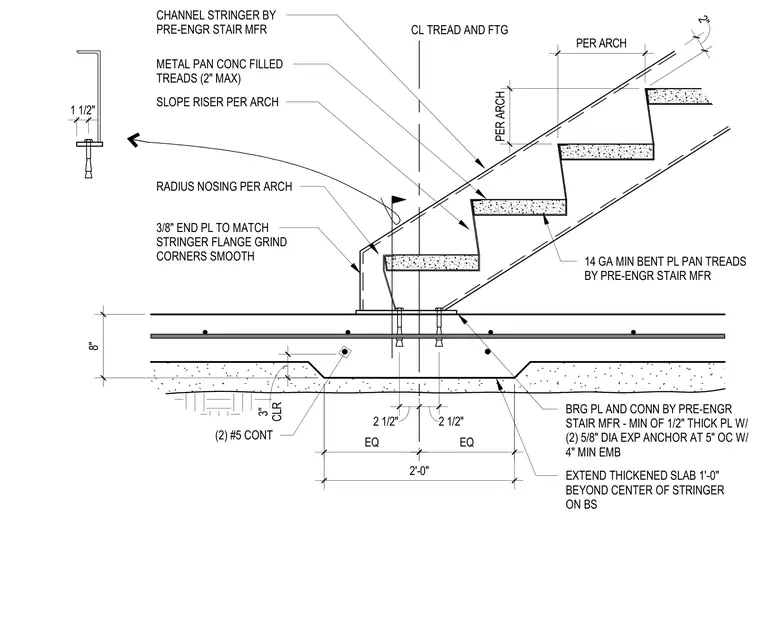

A pre-engineered steel stair stringer bears on a thickened concrete slab at the base connection. The assembly features a minimum 1/2-inch thick bearing plate secured by two 5/8-inch diameter expansion anchors with a 4-inch minimum embedment into the concrete. The concrete slab is thickened to 8 inches and extends 1 foot beyond the center of the stringer, reinforced with two continuous #5 bars with 3 inches of clearance. The stair stringer incorporates a 3/8-inch end plate matched to the stringer flange with ground smooth corners, supporting fourteen-gauge minimum bent plate pan treads with concrete infill.
(2) #5 CONT CLR 3" 8" 2'-0" EQ EQ 2 1/2" 2 1/2" EXTEND THICKENED SLAB 1'-0" BEYOND CENTER OF STRINGER ON BS BRG PL AND CONN BY PRE-ENGR STAIR MFR - MIN OF 1/2" THICK PL W/ (2) 5/8" DIA EXP ANCHOR AT 5" OC W/ 4" MIN EMB 14 GA MIN BENT PL PAN TREADS BY PRE-ENGR STAIR MFR 2" PER ARCH CL TREAD AND FTG 3/8" END PL TO MATCH STRINGER FLANGE GRIND CORNERS SMOOTH RADIUS NOSING PER ARCH METAL PAN CONC FILLED TREADS (2" MAX) SLOPE RISER PER ARCH CHANNEL STRINGER BY PRE-ENGR STAIR MFR 1 1/2" PER ARCH
