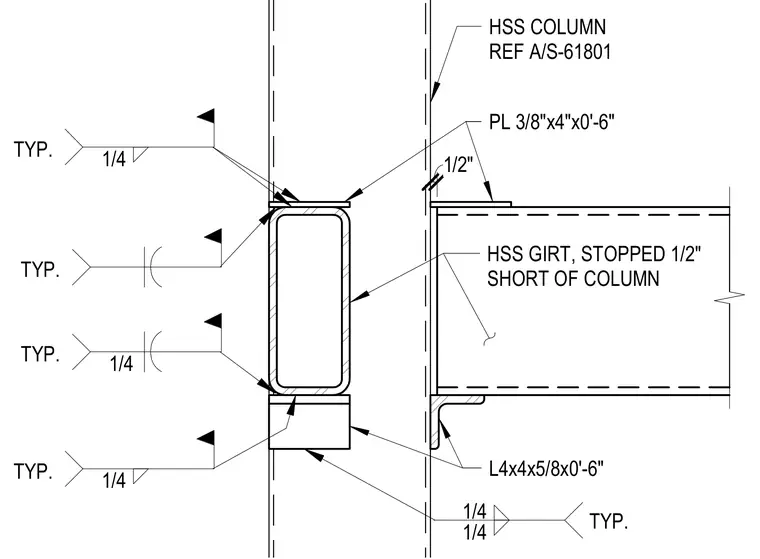

An HSS girt connects to an HSS column with a one-half-inch clearance gap maintained at the column face. A seat angle measuring L4x4x5/8 by zero-feet-six-inches supports the bottom of the girt, welded with one-quarter-inch fillet welds. A three-eighths-inch by four-inch by zero-feet-six-inch plate ties the top of the girt to the column face, secured with field welds. All specified fillet welds are one-quarter-inch typical.
HSS COLUMN REF A/S-61801 PL 3/8"x4"x0'-6" HSS GIRT, STOPPED 1/2" SHORT OF COLUMN L4x4x5/8x0'-6" 1/4 1/4 TYP. 1/4 TYP. TYP. 1/4 TYP. 1/4 TYP. 1/2" HSS GIRT, STOPPED 1/2" SHORT OF COLUMN
