A structural steel beam connects to the top of a hollow structural section column using a three-eighths-inch thick shear plate centered on each side of the HSS. The shear plate extends to accommodate an intersecting beam at the bottom flange or receives a quarter-inch stiffener plate measuring half the beam depth when no intersecting beam occurs. A three-quarter-inch diameter erection bolt secures the connection with a maximum half-inch gap permitted. Fillet welds of five-sixteenths inch secure the shear plate, and quarter-inch welds attach the stiffener plate.

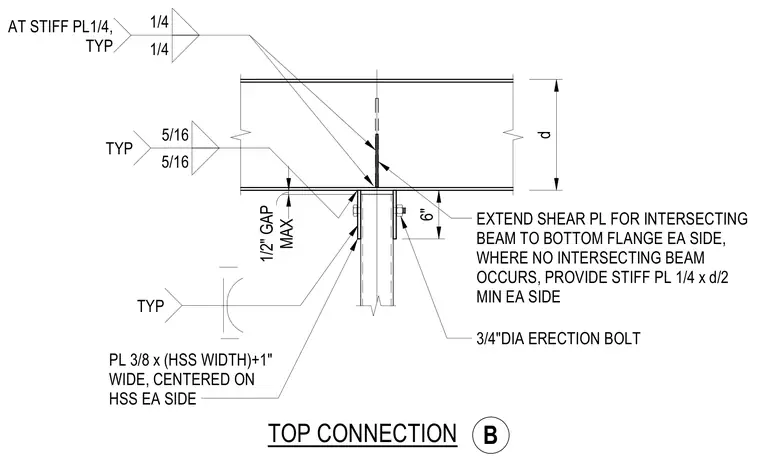

EXTEND SHEAR PL FOR INTERSECTING BEAM TO BOTTOM FLANGE EA SIDE, WHERE NO INTERSECTING BEAM OCCURS, PROVIDE STIFF PL 1/4 x d/2 MIN EA SIDE PL 3/8 x (HSS WIDTH)+1" WIDE, CENTERED ON HSS EA SIDE 3/4"DIA ERECTION BOLT TOP CONNECTION TYP 5/16 5/16 TYP 1/4 1/4 AT STIFF PL1/4, TYP B MAX 1/2" GAP d 6"
