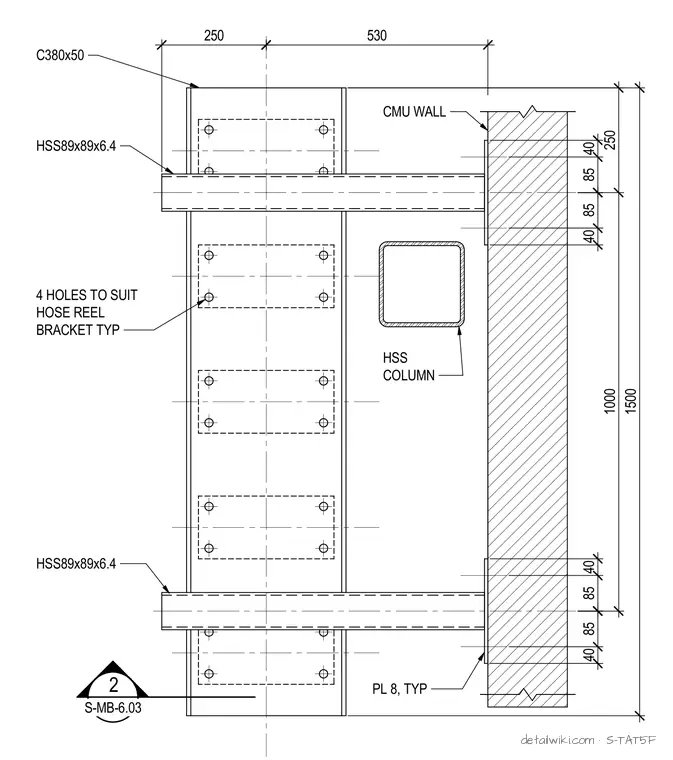

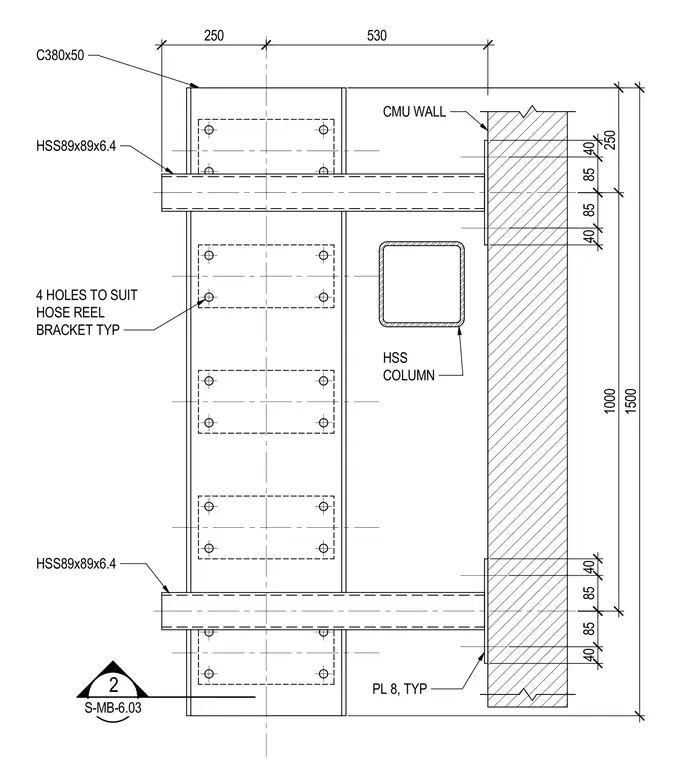

Two hollow structural section members of size HSS89x89x6.4 span horizontally between a concrete masonry unit wall and a vertical channel section C380x50. The hollow structural section members feature four holes at the connection points to suit a typical hose reel bracket. Eight millimeter thick plates are positioned typically at the masonry wall connection interface alongside a hollow structural section column. Dimensions establish spacing at the wall and channel supports.
2 S-MB-6.03 40 85 85 40 250 85 40 40 85 1500 CMU WALL PL 8, TYP HSS89x89x6.4 4 HOLES TO SUIT HOSE REEL BRACKET TYP HSS89x89x6.4 530 C380x50 1000 250 HSS COLUMN
