Reinforcing steel development lengths are detailed for both standard non-seismic and seismic hooked rebar conditions within concrete members. The standard non-seismic detail permits both 90-degree and 180-degree hooks measured from the face of concrete or pour joint. The seismic detail restricts rebar development strictly to 90-degree hooks anchored outside the face of confining ties. Concrete clear cover is maintained at 3 inches for unformed surfaces and 2 inches for formed surfaces.

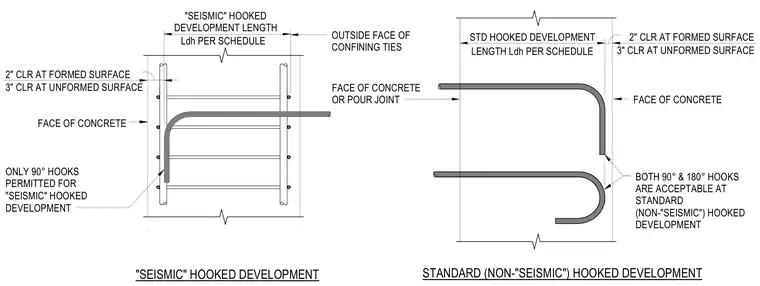

Ldh PER SCHEDULE "SEISMIC" HOOKED DEVELOPMENT LENGTH OUTSIDE FACE OF CONFINING TIES FACE OF CONCRETE 3" CLR AT UNFORMED SURFACE 2" CLR AT FORMED SURFACE STANDARD (NON-"SEISMIC") HOOKED DEVELOPMENT "SEISMIC" HOOKED DEVELOPMENT ONLY 90° HOOKS PERMITTED FOR "SEISMIC" HOOKED DEVELOPMENT FACE OF CONCRETE LENGTH Ldh PER SCHEDULE STD HOOKED DEVELOPMENT 3" CLR AT UNFORMED SURFACE 2" CLR AT FORMED SURFACE FACE OF CONCRETE OR POUR JOINT BOTH 90° & 180° HOOKS ARE ACCEPTABLE AT STANDARD (NON-"SEISMIC") HOOKED DEVELOPMENT
