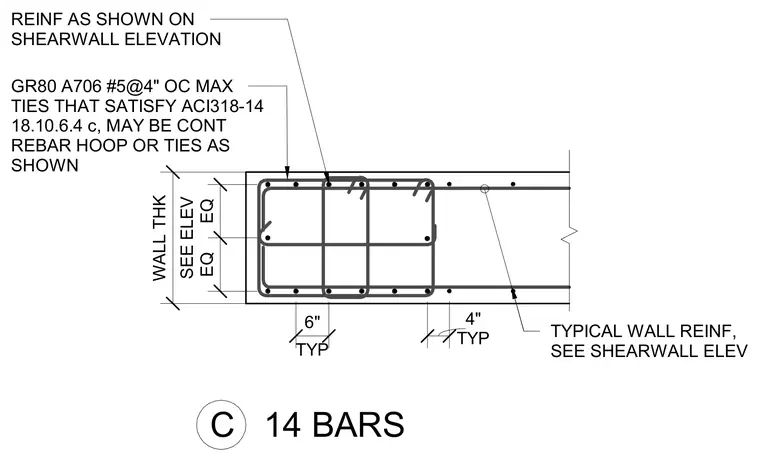

A reinforced concrete shear wall boundary element utilizes Grade 80 A706 number 5 ties spaced at four inches on center maximum satisfying ACI 318-14 18.10.6.4 c. Continuous rebar hoops or ties are positioned as shown within the wall thickness dimensioned per the shear wall elevation. Typical wall reinforcement consists of bars spaced at four inches on center with boundary ties spaced at six inches typical.
SEE ELEV WALL THK TYPICAL WALL REINF, SEE SHEARWALL ELEV . EQ EQ GR80 A706 #5@4" OC MAX TIES THAT SATISFY ACI318-14 18.10.6.4 c, MAY BE CONT REBAR HOOP OR TIES AS SHOWN REINF AS SHOWN ON SHEARWALL ELEVATION TYP 6" C 14 BARS TYP 4"
