Typical Composite Beam Details

Materials

Concrete Steel Metal (misc.)Composite

Elements

Columns Beams Floors / Slabs Decks Expansion / Control Joints

Connections

Shear Stud / Composite

About this detail

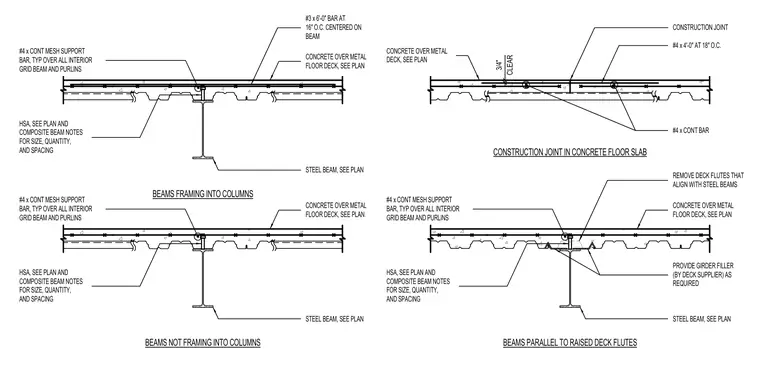

These structural details illustrate composite floor beam and slab conditions including beams framing into columns, beams not framing into columns, and beams parallel to raised deck flutes. Steel beams support a concrete over metal floor deck sized per plan, tied together with high strength anchor studs and reinforced with continuous mesh support bars and number three or number four bars at specified spacings. A separate construction joint detail in the concrete floor slab incorporates continuous reinforcement bars spaced at eighteen inches on center with a three-quarter inch clear opening. Where deck flutes align with steel beams, flutes are removed and girder filler is provided by the deck supplier as required.
