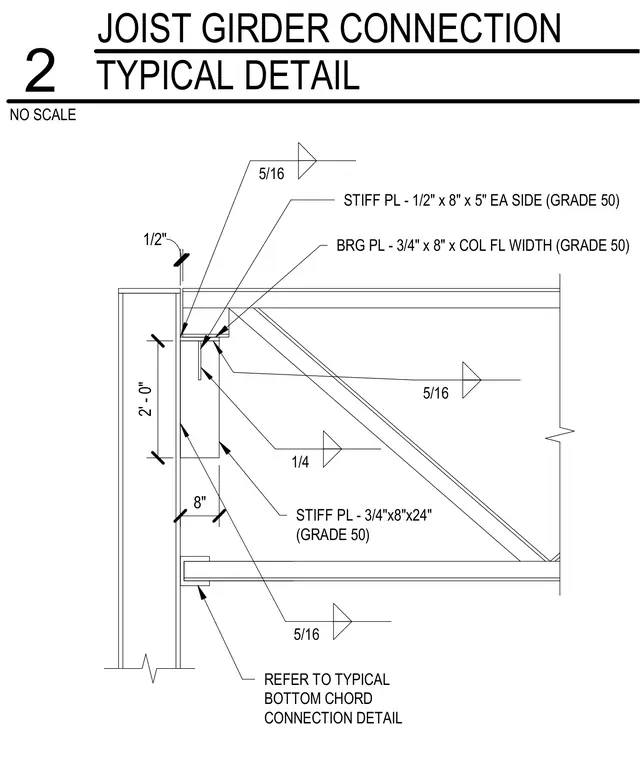

A structural steel joist girder connects to a column flange using welded bearing and stiffener plates made of Grade 50 steel. The top chord is supported by a 3/4-inch by 8-inch by column-flange-width bearing plate welded with 5/16-inch fillets, reinforced by two 1/2-inch by 8-inch by 5-inch stiffener plates on each side. A vertical 3/4-inch by 8-inch by 24-inch stiffener plate is welded to the column web with 1/4-inch fillets. The bottom chord connects via a designated typical bottom chord connection detail.
JOIST GIRDER CONNECTION STIFF PL - 3/4"x8"x24" (GRADE 50) BRG PL - 3/4" x 8" x COL FL WIDTH (GRADE 50) STIFF PL - 1/2" x 8" x 5" EA SIDE (GRADE 50) 5/16 5/16 5/16 1/4 2' - 0" 8" REFER TO TYPICAL BOTTOM CHORD CONNECTION DETAIL 1/2" TYPICAL DETAIL NO SCALE 2
