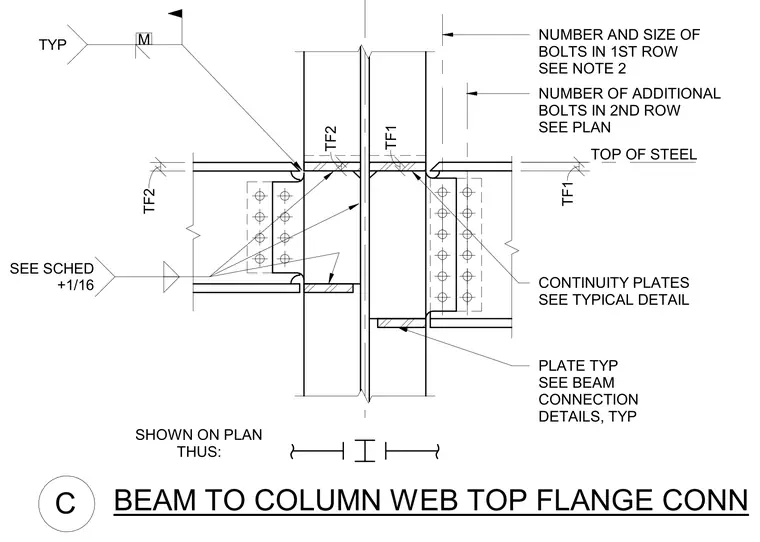

A beam-to-column web connection has top flange plates welded to the column flanges and beam top flanges. Continuity plates are aligned inside the column web in line with the top flange plates as specified in typical details. Shear plates welded to the column web connect to the beam webs using bolted connections with sizes and counts coordinated per the structural plans. Additional bolt rows are provided as indicated on the framing plans.
TOP OF STEEL PLATE TYP SEE BEAM CONNECTION DETAILS, TYP CONTINUITY PLATES SEE TYPICAL DETAIL TYP M SEE SCHED +1/16 TF2 TF1 TF2 TF1 SHOWN ON PLAN THUS: NUMBER AND SIZE OF BOLTS IN 1ST ROW SEE NOTE 2 NUMBER OF ADDITIONAL BOLTS IN 2ND ROW SEE PLAN BEAM TO COLUMN WEB TOP FLANGE CONN C
